24C04WP - 4K-bit Serial I2C Bus EEPROM

This page provides the datasheet information for the 24C04WP, a member of the 24C04 4K-bit Serial I2C Bus EEPROM family.

Datasheet Summary

Description

.

.

.

.

.

.

.

.

.

Features

  • Compatible with I2C bus modes:.
  • 400 kHz.
  • 100 kHz.
  • Memory array:.
  • 4 Kbit (512 bytes) of EEPROM.
  • Page size: 16 byte.
  • Single supply voltage:.
  • M24C04-W: 2.5 V to 5.5 V.
  • M24C04-R: 1.8 V to 5.5 V.
  • M24C04-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range).
  • Write:.
  • Byte Write within 5 ms.
  • Page Write within 5 ms.
  • Operating temperature range:.

📥 Download Datasheet

Datasheet preview – 24C04WP

Datasheet Details

Part number 24C04WP
Manufacturer STMicroelectronics
File Size 722.39 KB
Description 4K-bit Serial I2C Bus EEPROM
Datasheet download datasheet 24C04WP Datasheet
Additional preview pages of the 24C04WP datasheet.

📁 Similar Datasheet

  • 24C04 - 512 x 8-BIT EEPROM (Turbo IC)
  • 24C04 - 2-WIRE SERIAL CMOS EEPROM (ISSI)
  • 24C04 - 2-Wire Serial EEPROM (ATMEL)
  • 24C04 - 8-lead SOP and 8-lead TSSOP (Estek Electronics)
  • 24C04 - 2-WIRE SERIAL CMOS EEPROM (Bookly Micro)
  • 24C04 - Two-Wire Serial EEPROM (ETC)
  • 24C04A - 4K 5V I2C Scrial EEPROM (Microchip)
  • 24C00 - 128-Bit I2C Bus Serial EEPROM (Microchip)
  • 24C01 - 2-Wire Serial EEPROM (ATMELCorporation)
  • 24C01 - 2-WIRE SERIAL CMOS EEPROM (ISSI)
Other Datasheets by STMicroelectronics
  • 24C04 - 4K-bit Serial I2C Bus EEPROM
  • 24C01 - I2C bus EEPROM
  • 24C01B1 - ST24C01B1
  • 24c02 - 1-Kbit and 2-Kbit serial I2C bus EEPROM
  • 24c02WP - 1-Kbit and 2-Kbit serial I2C bus EEPROM
  • 24C08 - 8K-bit Serial I2C Bus EEPROM
  • 24C16 - 16K-bit Serial I2C Bus EEPROM
  • 24C16WP - 16-Kbit serial I2C bus EEPROM

Full PDF Text Transcription

Click to expand full text

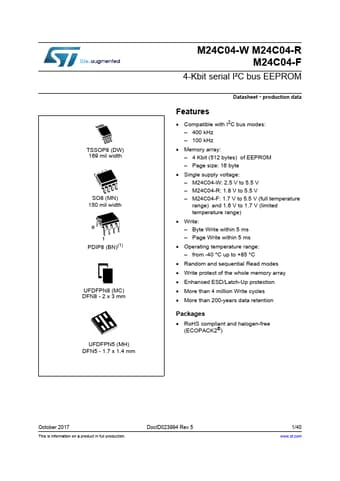

TSSOP8 (DW) 169 mil width SO8 (MN) 150 mil width   PDIP8 (BN)(1) UFDFPN8 (MC) DFN8 - 2 x 3 mm UFDFPN5 (MH) DFN5 - 1.7 x 1.4 mm M24C04-W M24C04-R M24C04-F 4-Kbit serial I²C bus EEPROM Datasheet - production data Features • Compatible with I2C bus modes: – 400 kHz – 100 kHz • Memory array: – 4 Kbit (512 bytes) of EEPROM – Page size: 16 byte • Single supply voltage: – M24C04-W: 2.5 V to 5.5 V – M24C04-R: 1.8 V to 5.5 V – M24C04-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.
