200N6F3 - 60V N-Channel Power MOSFET

STMicroelectronics

The 200N6F3 by STMicroelectronics is a 60V N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

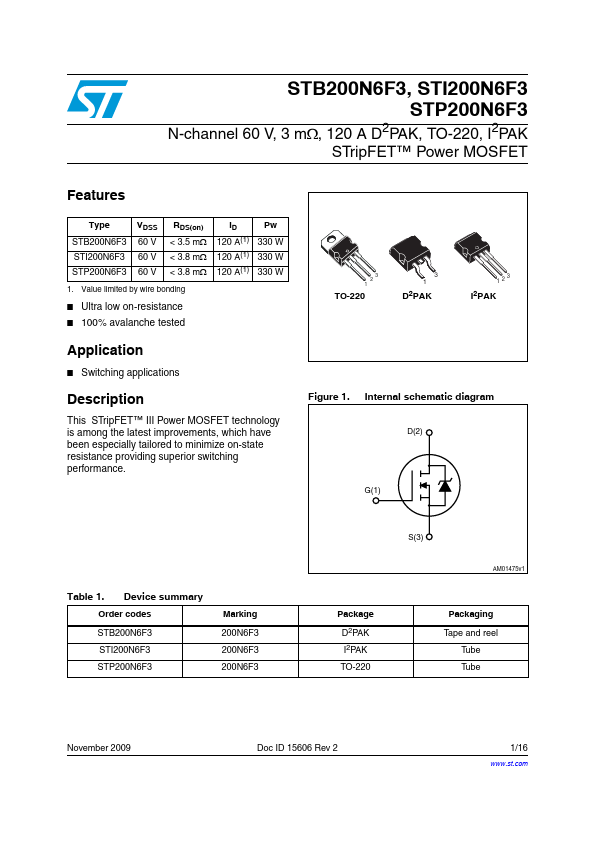

200N6F3 60V N-Channel Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **200N6F3** 60V N-Channel Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	200N6F3
Manufacturer	STMicroelectronics
File Size	852.51 KB
Description	60V N-Channel Power MOSFET
Datasheet	200N6F3-STMicroelectronics.pdf

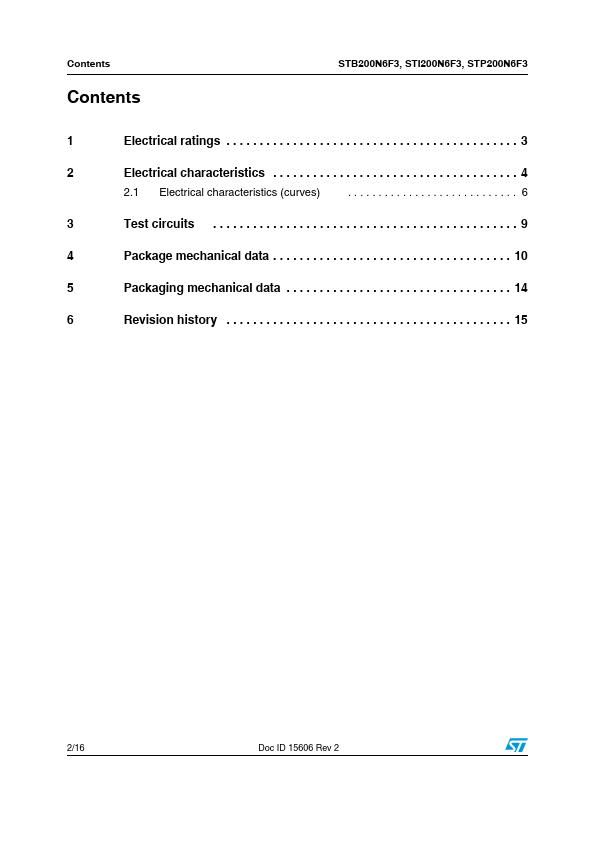

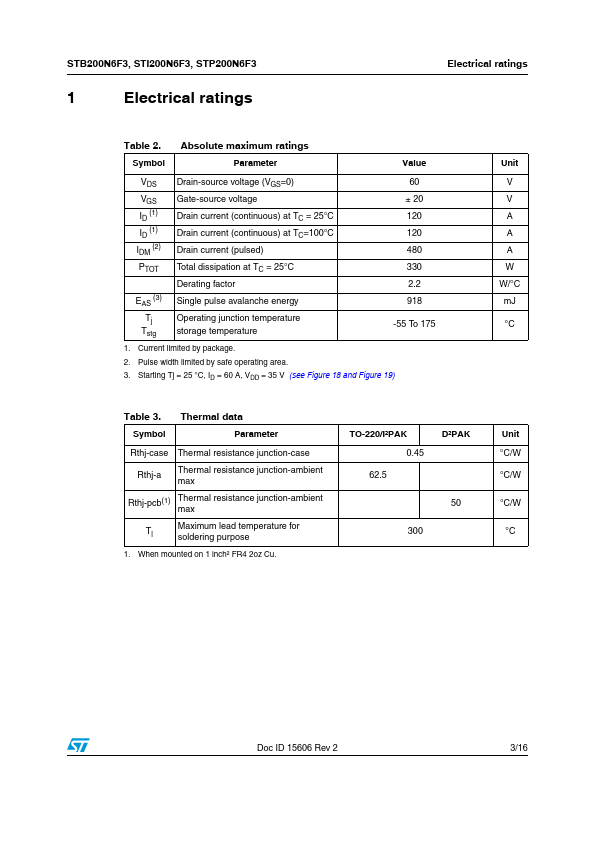

Additional preview pages of the 200N6F3 datasheet.

200N6F3 Product details

Description

This STripFET™ III Power MOSFET technology is among the latest improvements, which have been especially tailored to minimize on-state resistance providing superior switching performance.

Features

Type STB200N6F3 STI200N6F3 STP200N6F3 VDSS 60 V 60 V 60 V RDS(on) < 3.5 mΩ < 3.8 mΩ < 3.8 mΩ ID 120 A(1) 120 A(1) 120 A(1) Pw 330 W 330 W 330 W 1. Value limited by wire bonding.
Ultra low on-resistance.
100% avalanche tested.
