1N5908 - Transil

Name: 1N5908
SKU: 1N5908-98605

STMicroelectronics

📥 Download Datasheet

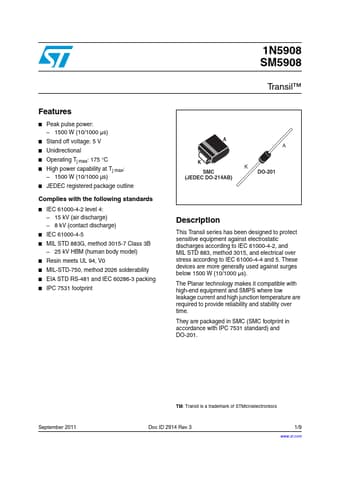

1N5908 Datasheet Preview — Preview of 1N5908 PDF

Datasheet Details

Part number	1N5908
Manufacturer	STMicroelectronics
File Size	110.79 KB
Description	Transil
Datasheet	1N5908_STMicroelectronics.pdf

1N5908 Product details

Description

This Transil series has been designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, and MIL STD 883, method 3015, and electrical over stress according to IEC 61000-4-4 and 5.

Features

Peak pulse power:.
1500 W (10/1000 μs).
Stand off voltage: 5 V.
Unidirectional.
Operating Tj max: 175 °C.
High power capability at Tj max:.
1500 W (10/1000 µs).
JEDEC registered package outline Complies with the following standards.
IEC 61000-4-2 level 4:.
15 kV (air discharge).
8 kV (contact discharge).
IEC 61000-4-5.
MIL STD 883G, method 3015-7 Class 3B.
25 kV HBM (human body model).
Resin meets UL.
