150N3LLH6 - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

150N3LLH6 Datasheet Preview — Preview of 150N3LLH6 PDF

Datasheet Details

Part number	150N3LLH6
Manufacturer	STMicroelectronics
File Size	921.42 KB
Description	N-channel Power MOSFET
Datasheet	150N3LLH6-STMicroelectronics.pdf

150N3LLH6 Product details

Description

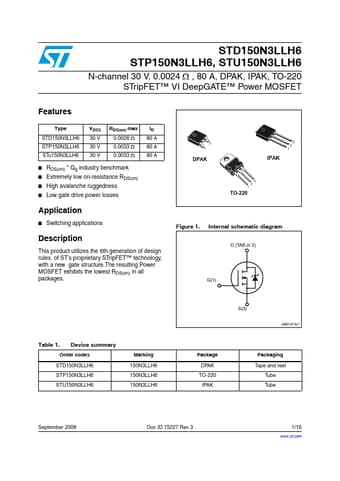

This product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.The resulting Power MOSFET exhibits the lowest RDS(on) in all packages.3 1 DPAK IPAK 3 2 1 3 2 1 TO-220 Figure 1. Internal schematic diagram $4!"OR ' Table 1. Device summary Order codes STD150N3LLH6 STP150N3LLH6 STU150N3LLH6 Marking 150N3LLH6 150N3LLH6 150N3LLH6 3 !-V Package DPAK TO-220 IPAK Packaging Tape and reel Tube Tube September 2009

Features

Type STD150N3LLH6 STP150N3LLH6 STu150N3LLH6 VDSS 30 V 30 V 30 V RDS(on) max 0.0028 Ω 0.0033 Ω 0.0033 Ω ID 80 A 80 A 80 A.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
High avalanche ruggedness.
Low gate drive power losses.
