MD29HTS120P6HET

The MD29HTS120P6HET is SiC MOSFET designed by STARPOWER.

Product Overview

STARPOWER

📥 Download Datasheet

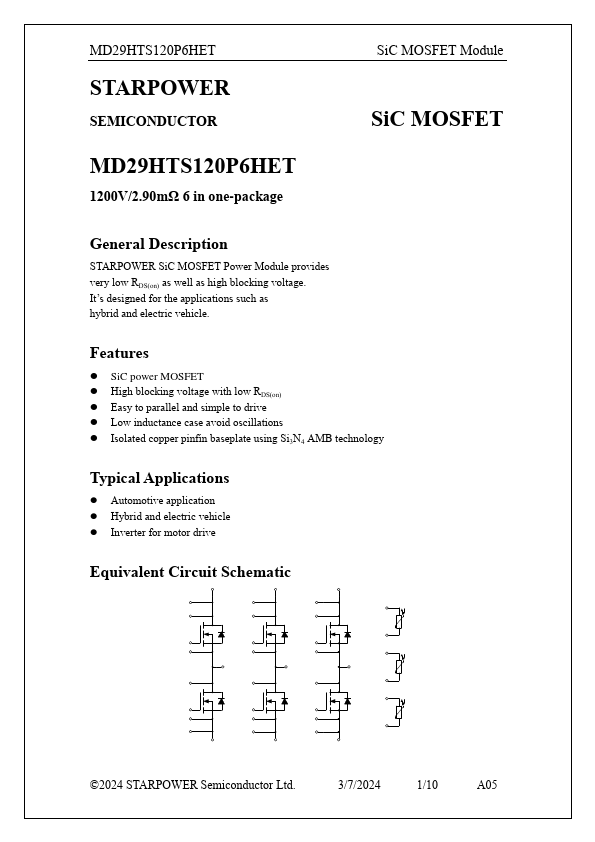

MD29HTS120P6HET SiC MOSFET by STARPOWER - Datasheet Preview — Datasheet preview – MD29HTS120P6HET

Datasheet Details

Part number	MD29HTS120P6HET
Manufacturer	STARPOWER
File Size	750.44 KB
Description	SiC MOSFET
Datasheet	MD29HTS120P6HET-STARPOWER.pdf

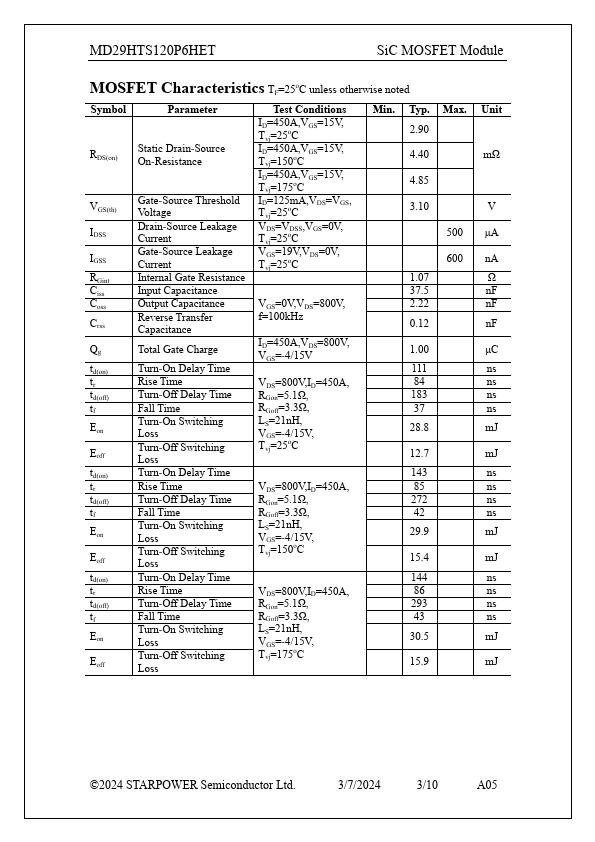

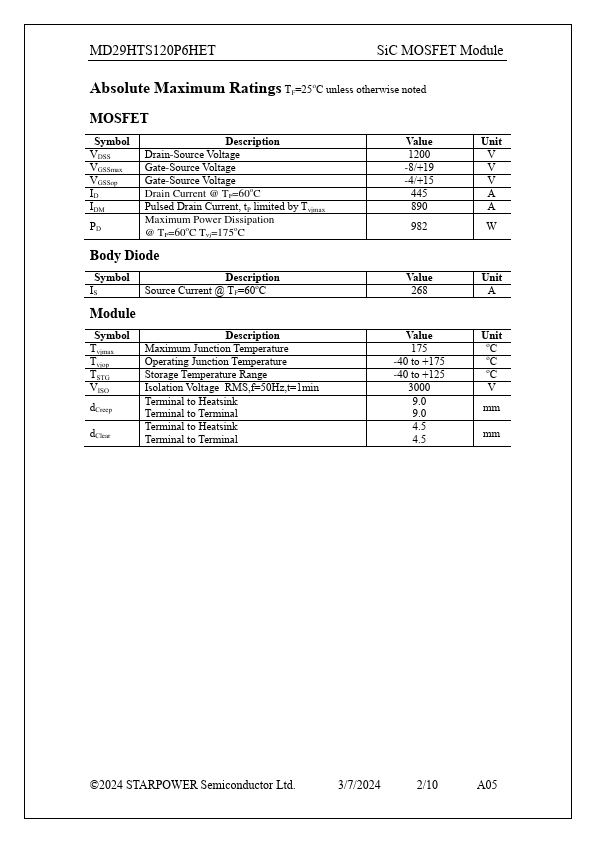

Additional preview pages of the MD29HTS120P6HET datasheet.

Product details

Description

STARPOWER SiC MOSFET Power Module provides very low RDS(on) as well as high blocking voltage.

Features

SiC power MOSFET.
High blocking voltage with low RDS(on).
Easy to parallel and simple to drive.
Low inductance case avoid oscillations.
Isolated copper pinfin baseplate using Si3N4 AMB technology Typical.
