GD900CUY120P1S - IGBT

STARPOWER

📥 Download Datasheet

GD900CUY120P1S Datasheet Preview — Preview of GD900CUY120P1S PDF

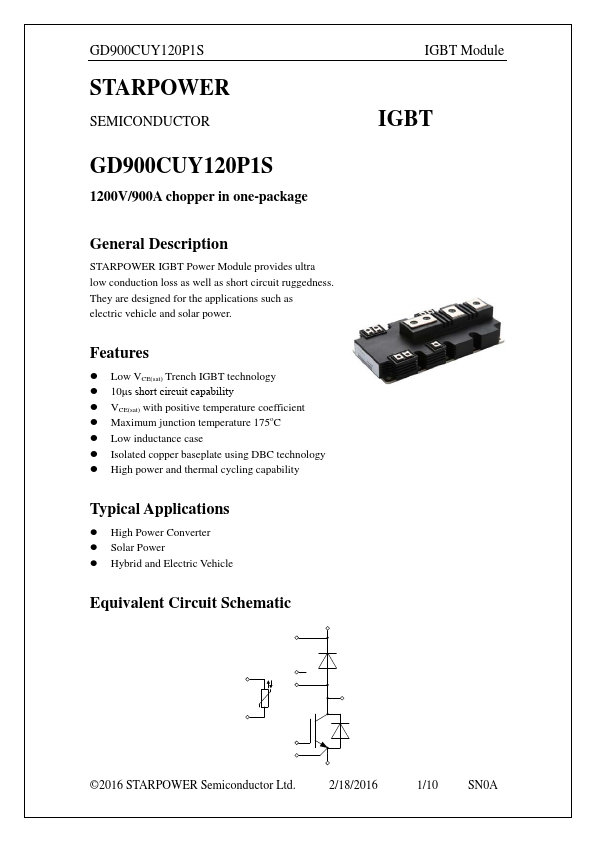

datasheet Preview Page 2

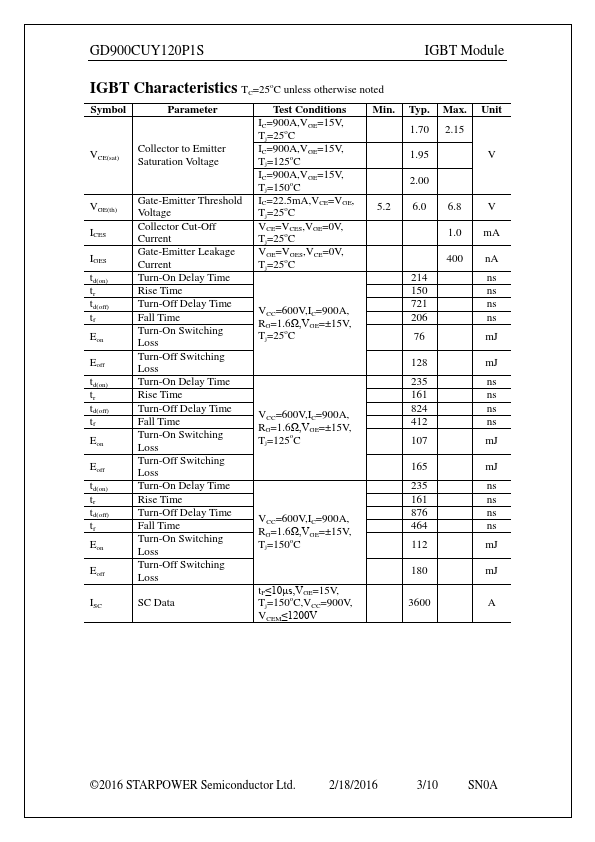

datasheet Preview Page 3

Datasheet Details

Part number	GD900CUY120P1S
Manufacturer	STARPOWER
File Size	176.78 KB
Description	IGBT
Datasheet	GD900CUY120P1S-STARPOWER.pdf

GD900CUY120P1S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Isolated copper baseplate using DBC technology.
High power and thermal cycling capability Typical.
