GD820HTX75P6HL - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

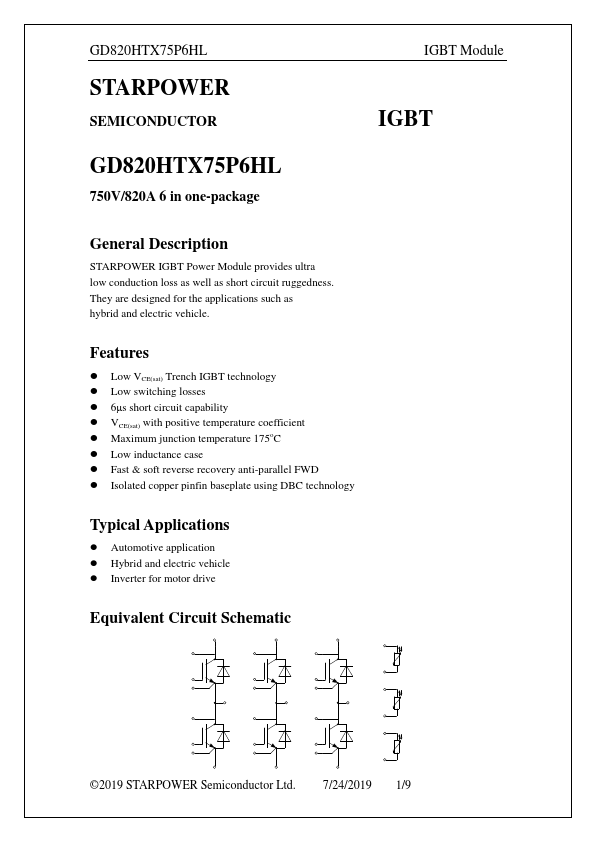

GD820HTX75P6HL IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD820HTX75P6HL

Datasheet Details

Part number	GD820HTX75P6HL
Manufacturer	STARPOWER
File Size	282.70 KB
Description	IGBT
Datasheet	GD820HTX75P6HL Datasheet

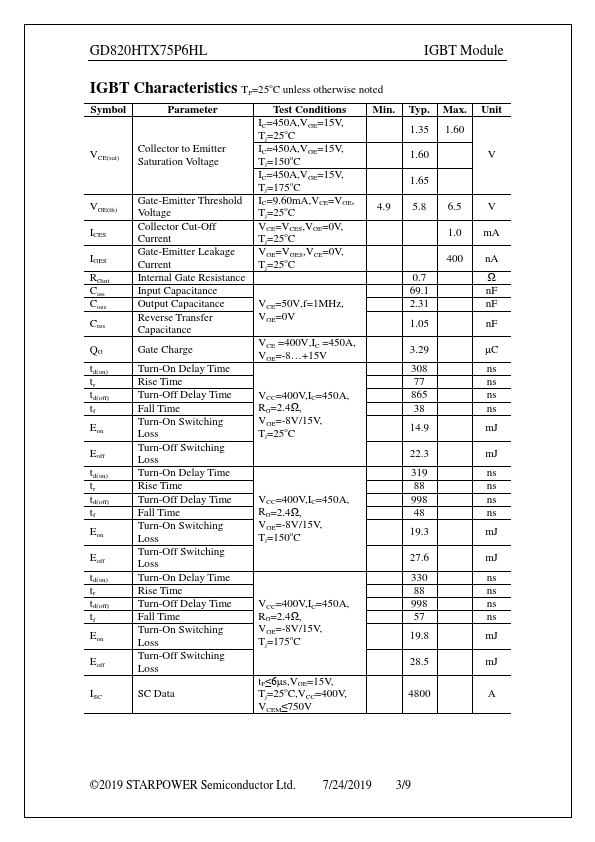

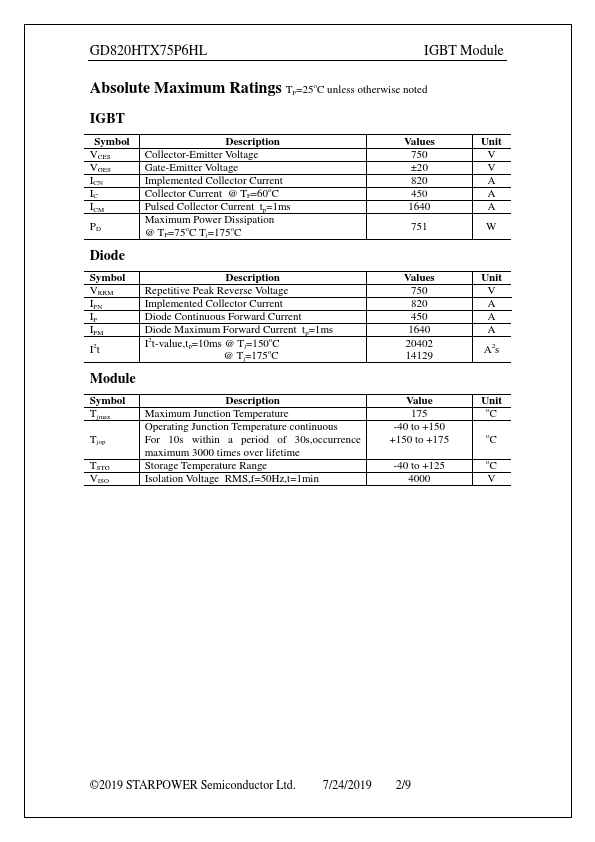

Additional preview pages of the GD820HTX75P6HL datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Low switching losses.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper pinfin baseplate using DBC technology Typical.
