GD800HTX65P4S - IGBT

Product Overview

STARPOWER

📥 Download Datasheet

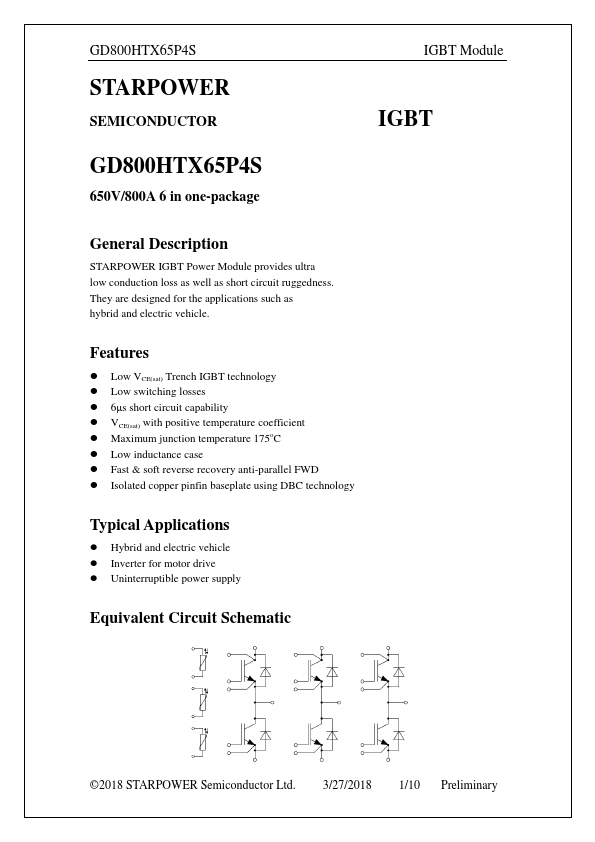

GD800HTX65P4S IGBT by STARPOWER - Datasheet Preview — Datasheet preview – GD800HTX65P4S

Datasheet Details

Part number	GD800HTX65P4S
Manufacturer	STARPOWER
File Size	297.49 KB
Description	IGBT
Datasheet	GD800HTX65P4S Datasheet

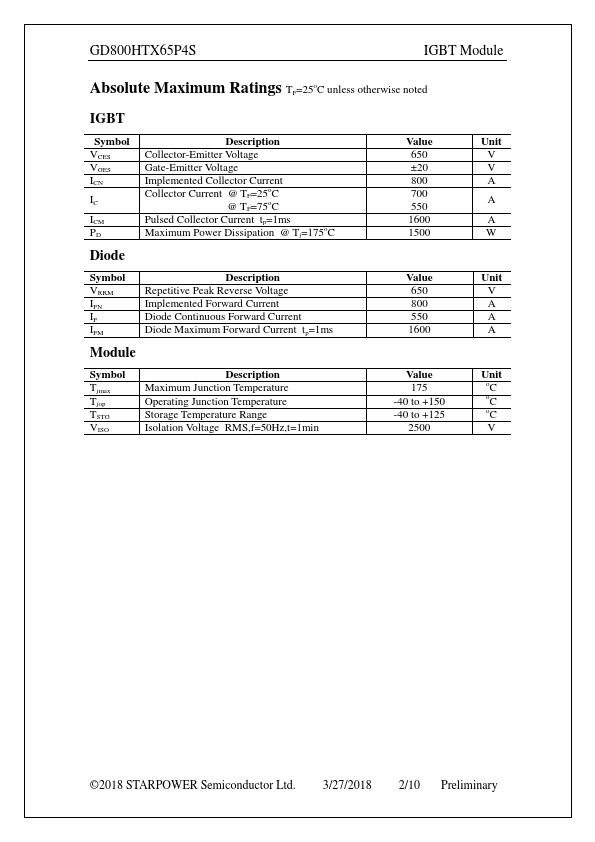

Additional preview pages of the GD800HTX65P4S datasheet.

Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Low switching losses.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper pinfin baseplate using DBC technology Typical.
