GD75HHU120C5SD Datasheet - STARPOWER

GD75HHU120C5SD-STARPOWER.pdf

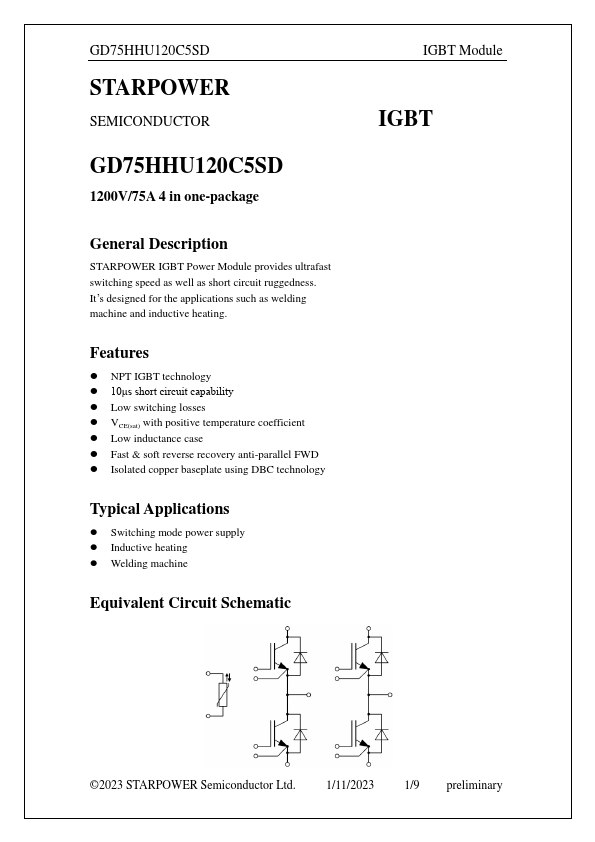

Preview of GD75HHU120C5SD PDF

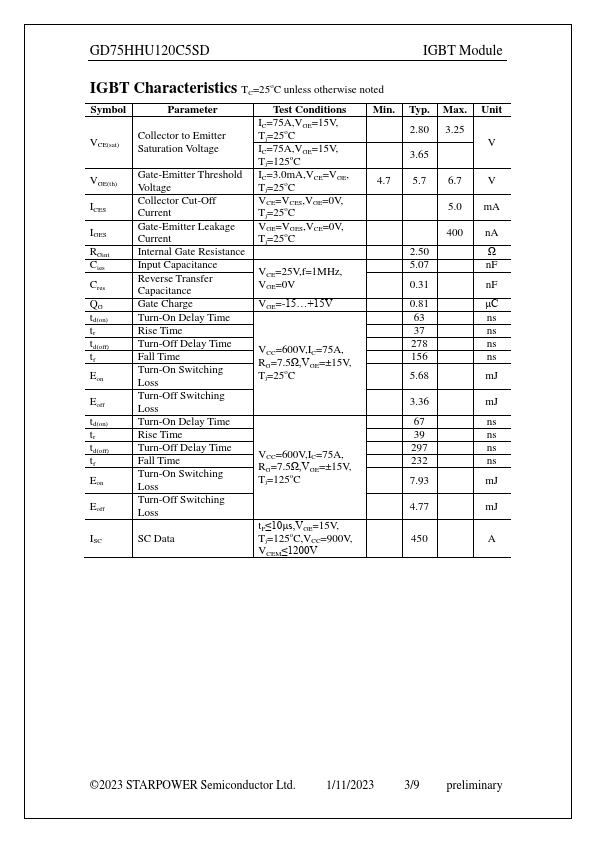

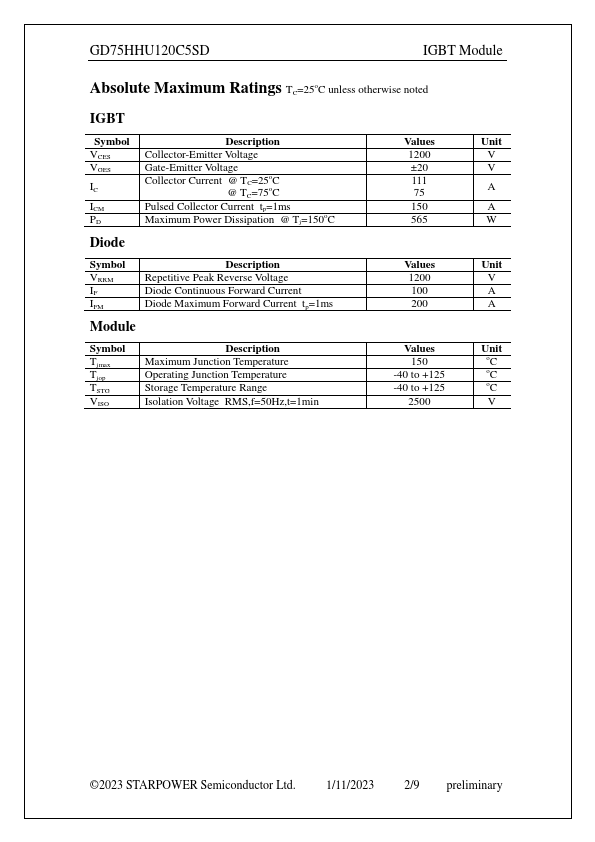

GD75HHU120C5SD Datasheet Preview Page 2 GD75HHU120C5SD Datasheet Preview Page 3

Datasheet Details

Part number:

GD75HHU120C5SD

Manufacturer:

STARPOWER

File Size:

481.57 KB

Description:

Igbt.

GD75HHU120C5SD, IGBT

GD75HHU120C5SD Features

* NPT IGBT technology

* 10μs short circuit capability

* Low switching losses

* VCE(sat) with positive temperature coefficient

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated copper baseplate using DBC technology Typical Applications
