GD600HFX120C2SA_B20 - IGBT

STARPOWER

📥 Download Datasheet

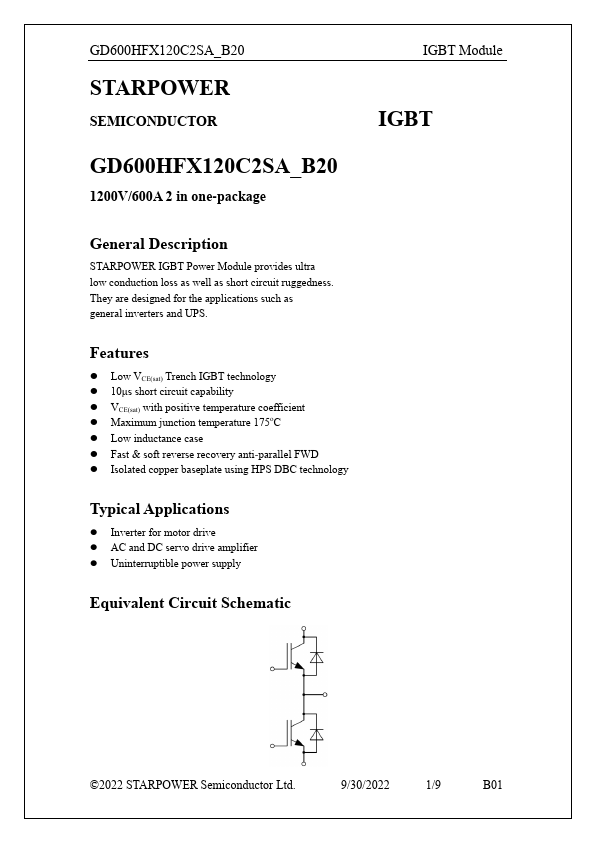

GD600HFX120C2SA_B20 Datasheet Preview — Preview of GD600HFX120C2SA_B20 PDF

datasheet Preview Page 2

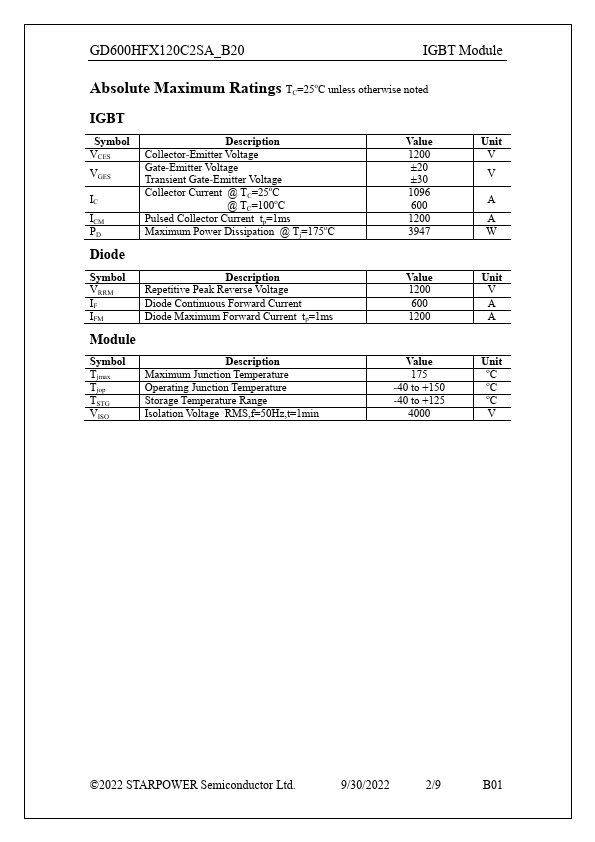

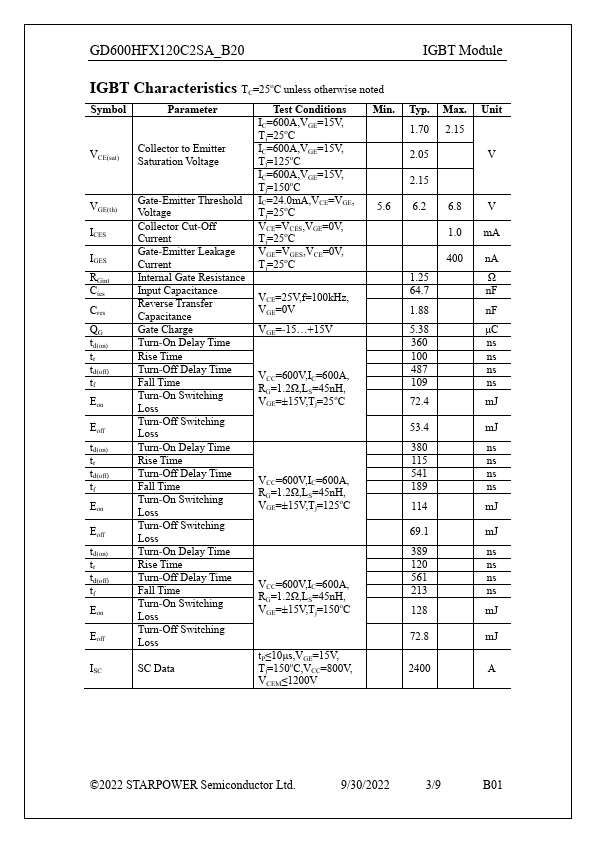

datasheet Preview Page 3

Datasheet Details

Part number	GD600HFX120C2SA_B20
Manufacturer	STARPOWER
File Size	395.10 KB
Description	IGBT
Datasheet	GD600HFX120C2SA_B20-STARPOWER.pdf

GD600HFX120C2SA_B20 Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using HPS DBC technology Typical.
