GD50PIY120C6S - IGBT

STARPOWER

📥 Download Datasheet

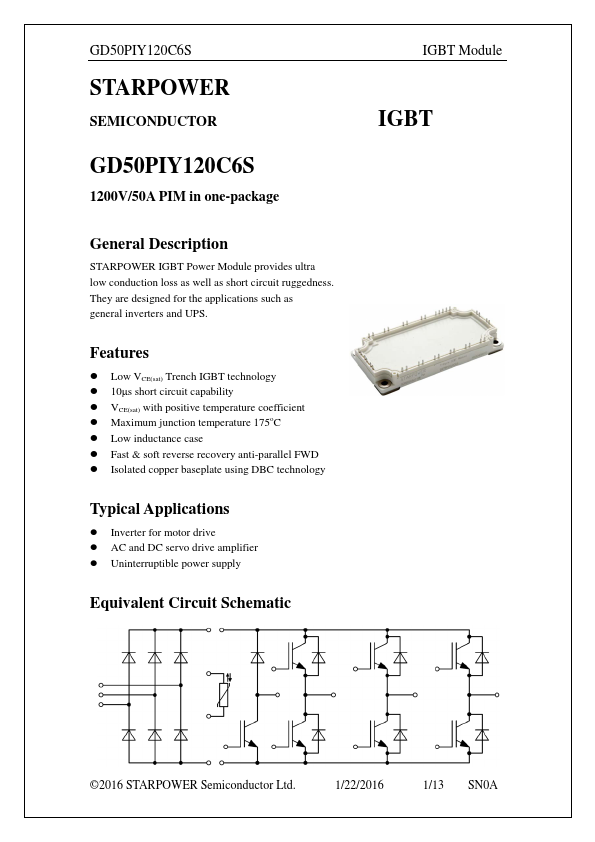

GD50PIY120C6S Datasheet Preview — Preview of GD50PIY120C6S PDF

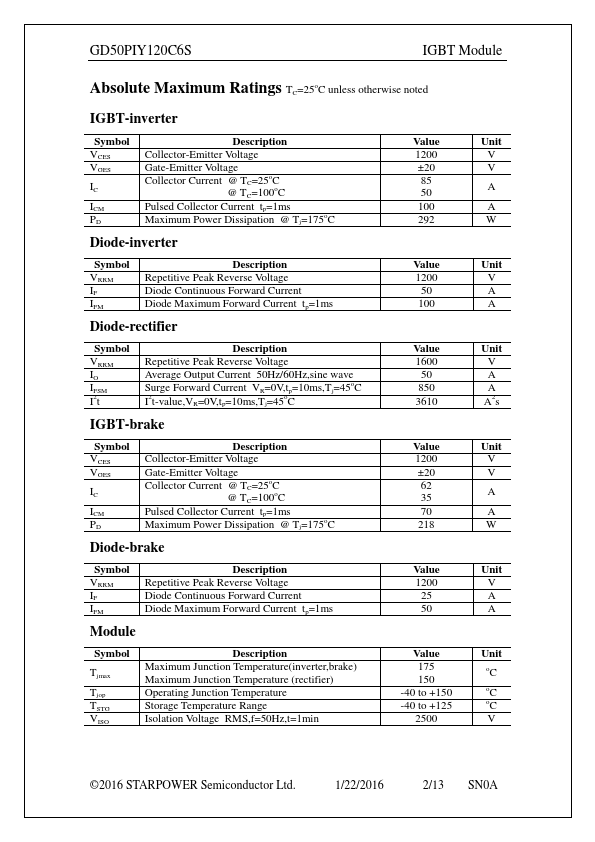

datasheet Preview Page 2

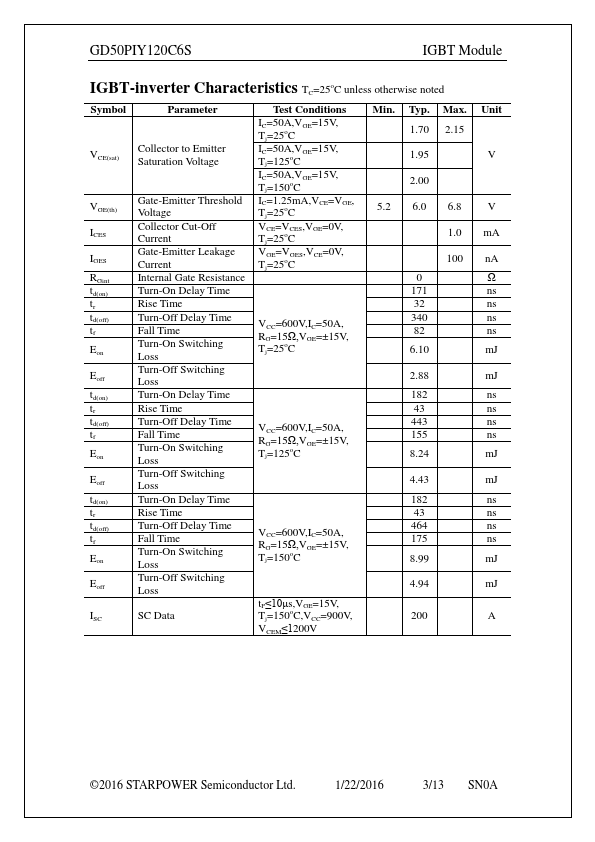

datasheet Preview Page 3

Datasheet Details

Part number	GD50PIY120C6S
Manufacturer	STARPOWER
File Size	341.22 KB
Description	IGBT
Datasheet	GD50PIY120C6S-STARPOWER.pdf

GD50PIY120C6S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
