GD300FFA120C6S - IGBT

Datasheet Summary

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

  • Low VCE(sat) Trench IGBT technology.
  • 6μs short circuit capability.
  • VCE(sat) with positive temperature coefficient.
  • Maximum junction temperature 175oC.
  • Low inductance case.
  • Fast & soft reverse recovery anti-parallel FWD.
  • Isolated copper baseplate using DBC technology Typical.

📥 Download Datasheet

Datasheet preview – GD300FFA120C6S

Datasheet Details

Part number GD300FFA120C6S
Manufacturer STARPOWER
File Size 567.94 KB
Description IGBT
Datasheet download datasheet GD300FFA120C6S Datasheet

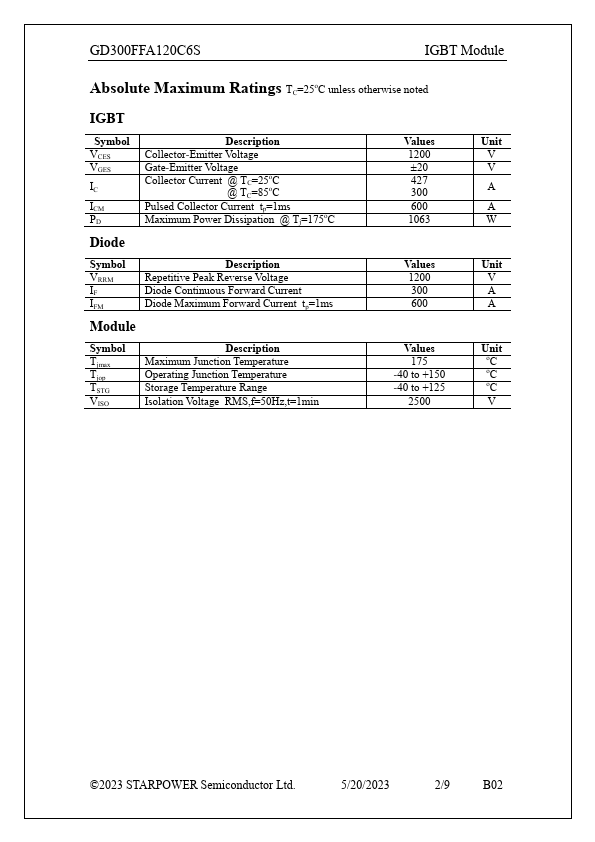

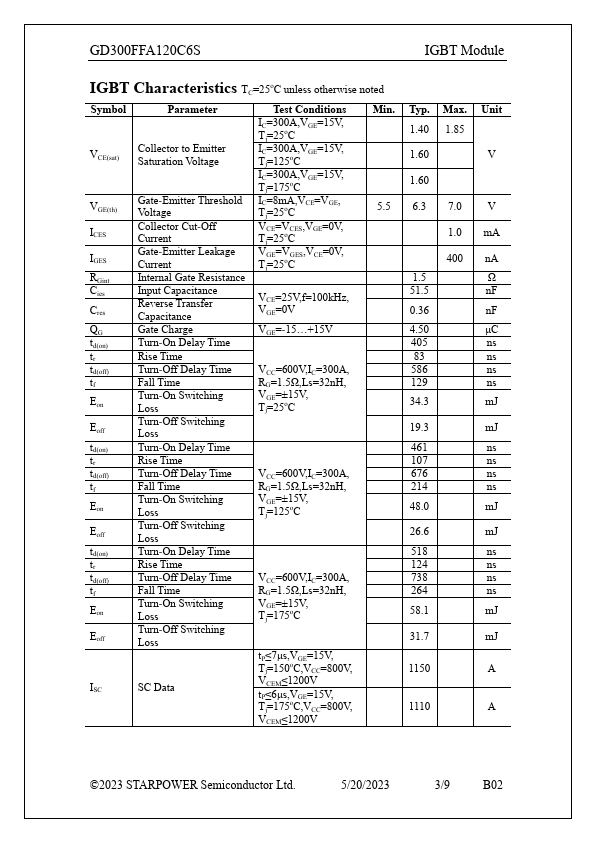

Additional preview pages of the GD300FFA120C6S datasheet.

📁 Similar Datasheet

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

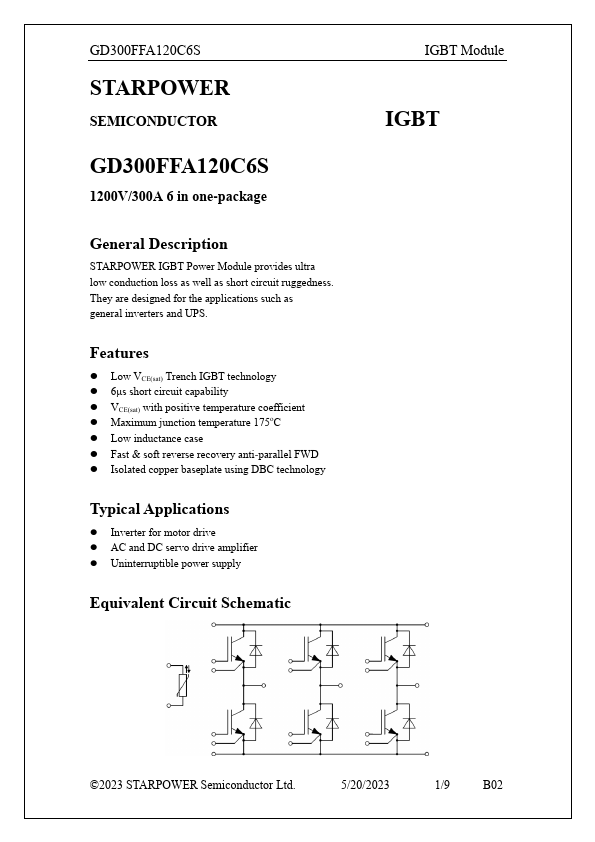

GD300FFA120C6S STARPOWER SEMICONDUCTOR GD300FFA120C6S 1200V/300A 6 in one-package General Description STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  Low VCE(sat) Trench IGBT technology  6μs short circuit capability  VCE(sat) with positive temperature coefficient  Maximum junction temperature 175oC  Low inductance case  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply Equivalent Circuit Schematic IGBT Module IGBT ©2023 STARPOWER Semiconductor Ltd.
