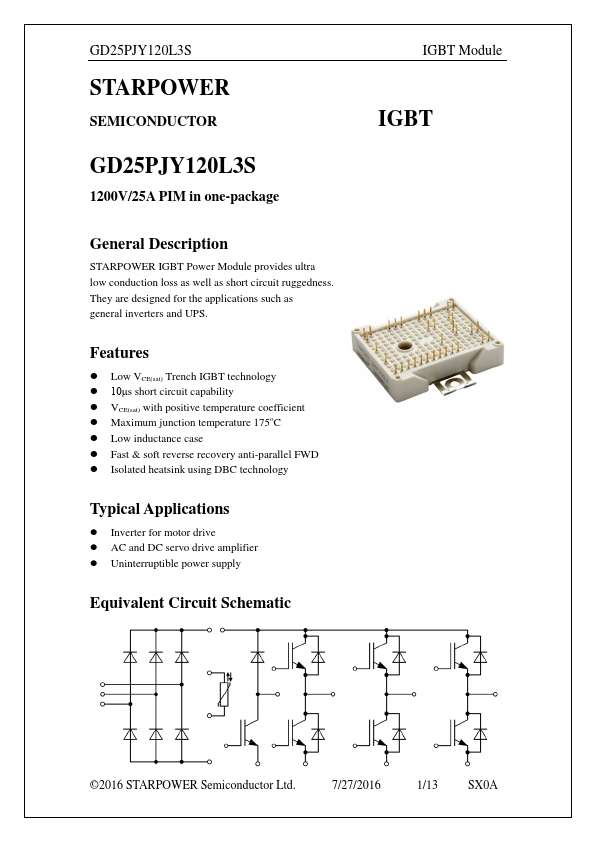

GD25PJY120L3S Datasheet Preview — Preview of GD25PJY120L3S PDF

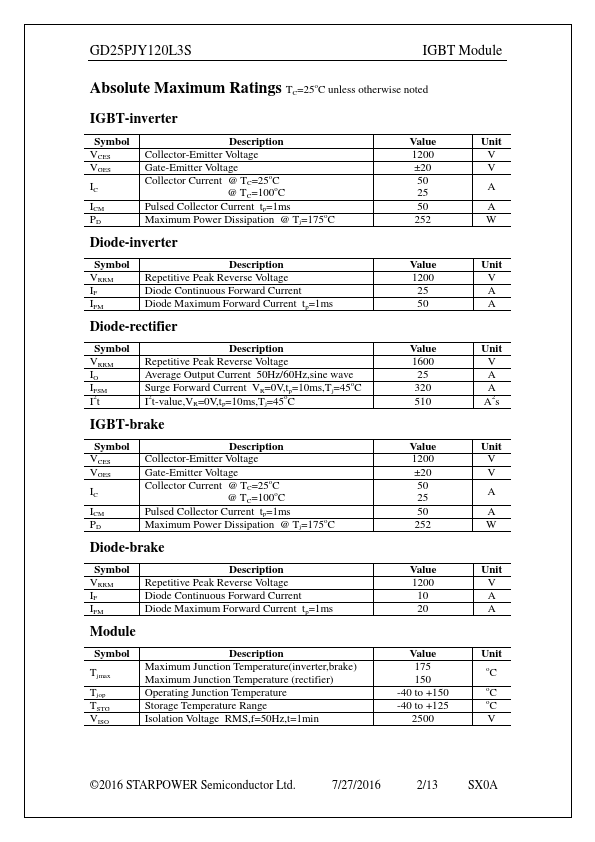

GD25PJY120L3S Datasheet Preview Page 2

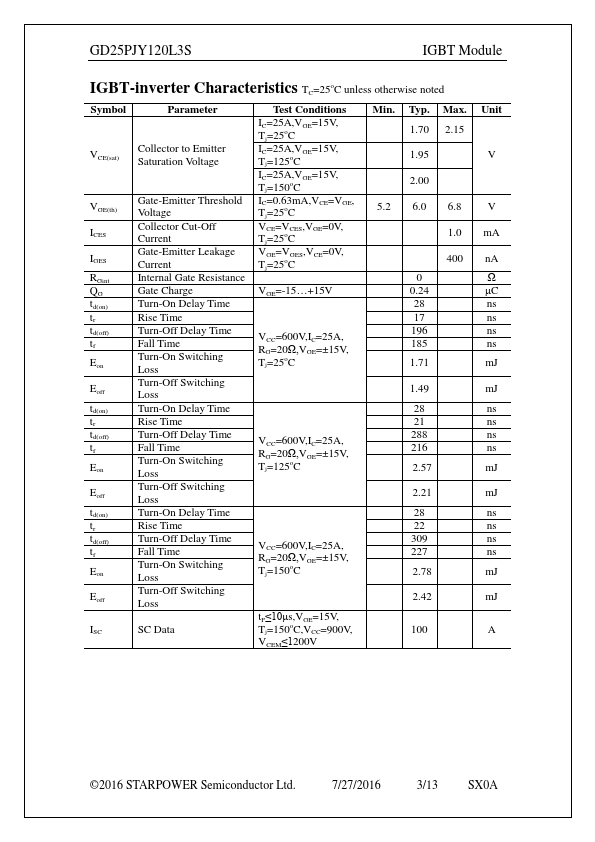

GD25PJY120L3S Datasheet Preview Page 3

Datasheet Details

Part number:

GD25PJY120L3S

Manufacturer:

STARPOWER

File Size:

365.87 KB

Description:

Igbt.

GD25PJY120L3S, IGBT

GD25PJY120L3S Features

* Low VCE(sat) Trench IGBT technology

* 10μs short circuit capability

* VCE(sat) with positive temperature coefficient

* Maximum junction temperature 175oC

* Low inductance case

* Fast & soft reverse recovery anti-parallel FWD

* Isolated heatsink using DBC technology Typi
