GD100FFX65C5SF - IGBT

STARPOWER

📥 Download Datasheet

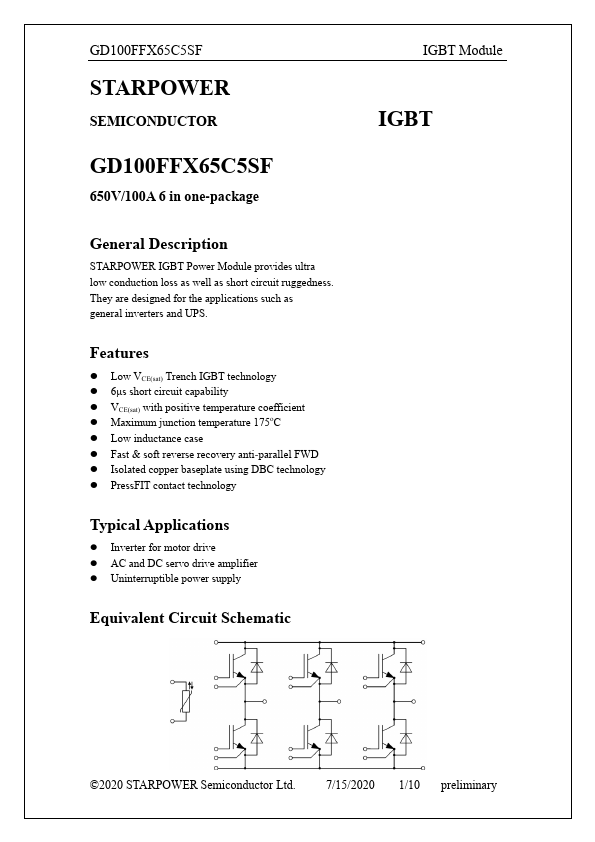

GD100FFX65C5SF Datasheet Preview — Preview of GD100FFX65C5SF PDF

datasheet Preview Page 2

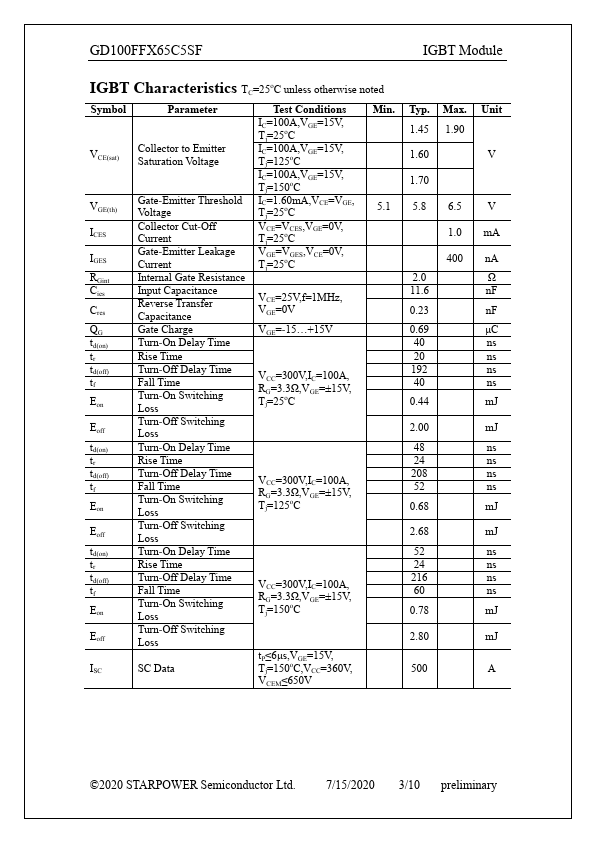

datasheet Preview Page 3

Datasheet Details

Part number	GD100FFX65C5SF
Manufacturer	STARPOWER
File Size	506.16 KB
Description	IGBT
Datasheet	GD100FFX65C5SF-STARPOWER.pdf

GD100FFX65C5SF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
6μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
