DG75X12T2 - IGBT

STARPOWER

The DG75X12T2 by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

DG75X12T2 IGBT by STARPOWER - Datasheet Preview — Official preview page of the DG75X12T2 IGBT datasheet (STARPOWER).

Datasheet Details

Part number	DG75X12T2
Manufacturer	STARPOWER
File Size	232.48 KB
Description	IGBT
Datasheet	DG75X12T2-STARPOWER.pdf

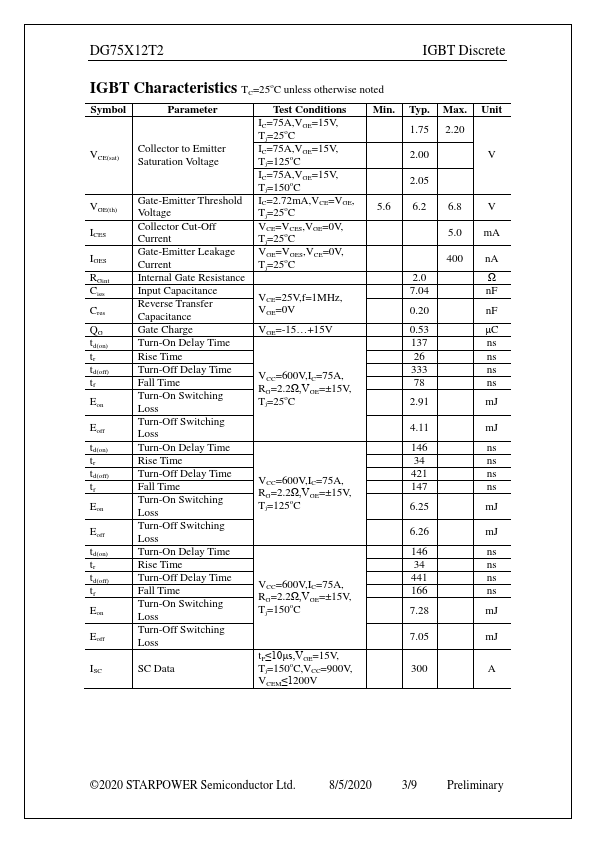

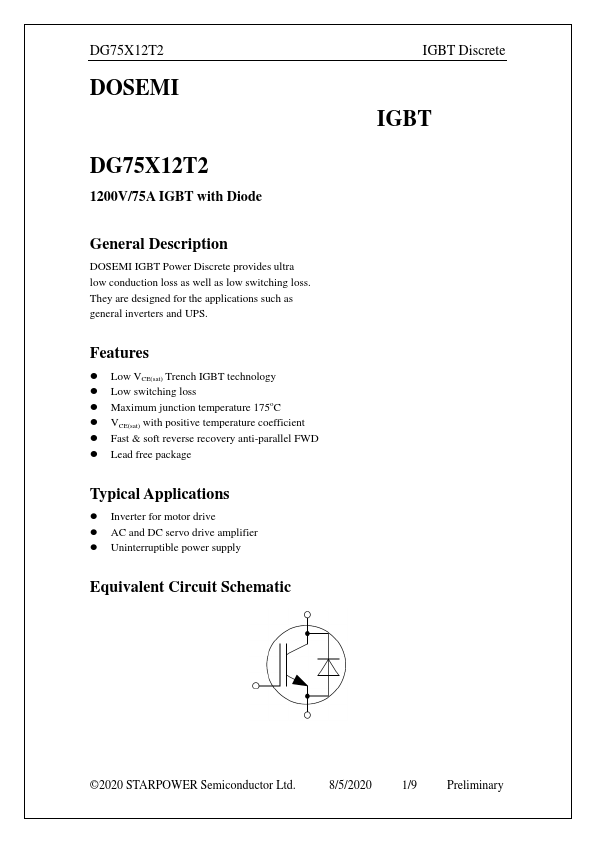

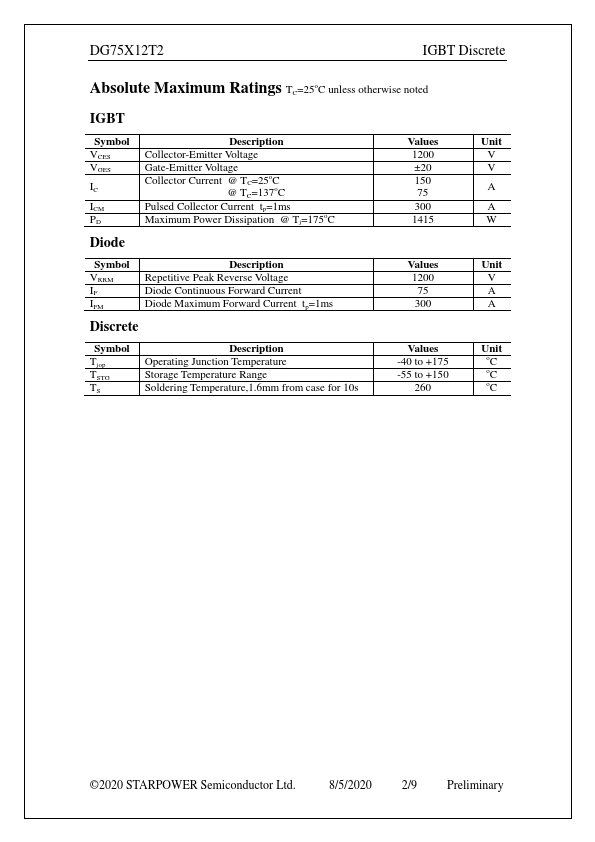

Additional preview pages of the DG75X12T2 datasheet.

DG75X12T2 Product details

Description

DOSEMI IGBT Power Discrete provides ultra low conduction loss as well as low switching loss.

Features

Low VCE(sat) Trench IGBT technology.
Low switching loss.
Maximum junction temperature 175oC.
VCE(sat) with positive temperature coefficient.
Fast & soft reverse recovery anti-parallel FWD.
Lead free package Typical.
