1SMB5937A

The 1SMB5937A is 3W SURFACE MOUNTSILICON ZENER DIODES designed by STAR SEA.

Product Overview

Part number	1SMB5937A, 1SMB5913A
Manufacturer	STAR SEA
File Size	647.51 KB
Description	3W SURFACE MOUNTSILICON ZENER DIODES
Datasheet	1SMB5913A-STARSEA.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMB5937A, 1SMB5913A. Please refer to the document for exact specifications by model.

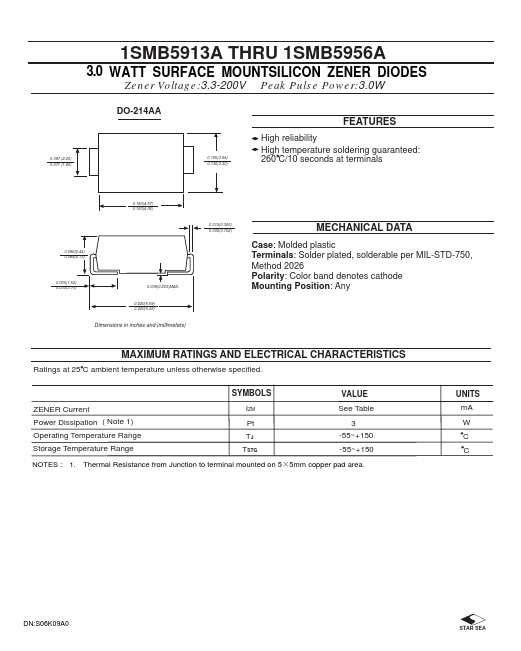

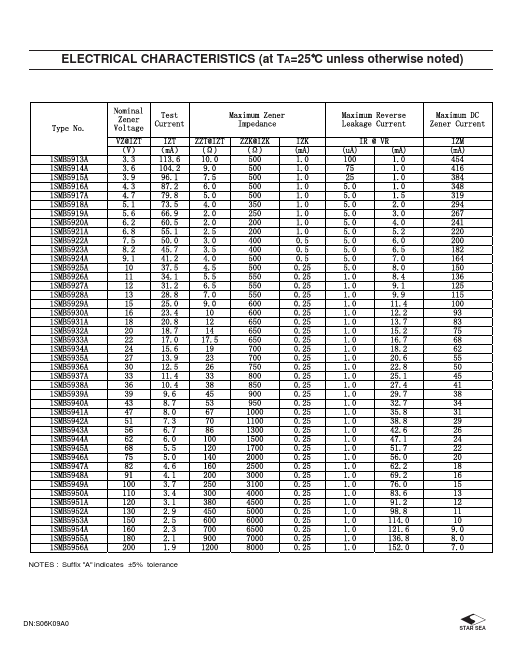

Additional preview pages of the 1SMB5937A datasheet.

High reliability High temperature soldering guaranteed: 260 C/10 seconds at terminals 0.180(4.57) 0.160(4.06) 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.220(5.59) 0.200(5.08) Dimensions in inches and (millimeters) 0.012(0.305) 0.006(0.152).
