1SMB5913A

The 1SMB5913A is 3W SURFACE MOUNTSILICON ZENER DIODES designed by STAR SEA.

Product Overview

Part number	1SMB5913A
Manufacturer	STAR SEA
File Size	647.51 KB
Description	3W SURFACE MOUNTSILICON ZENER DIODES
Datasheet	1SMB5913A-STARSEA.pdf

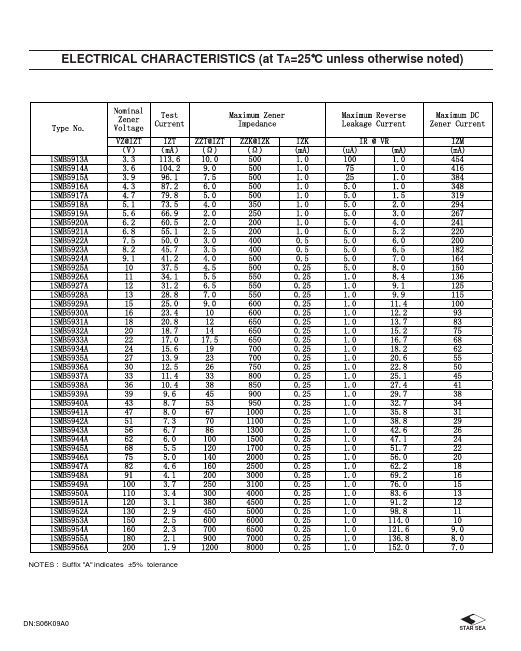

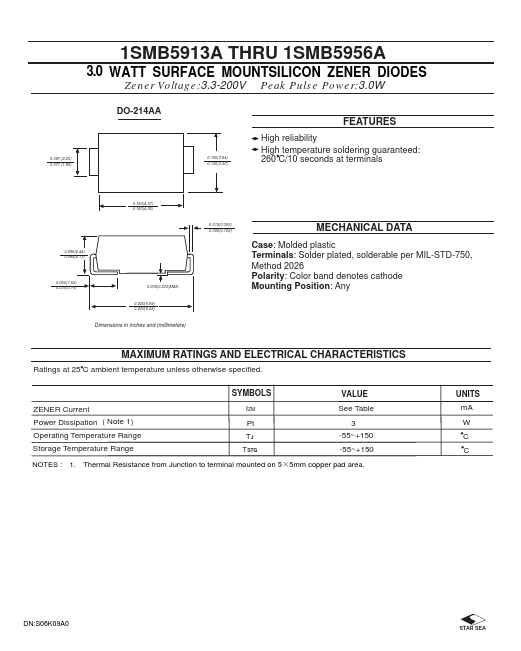

Additional preview pages of the 1SMB5913A datasheet.

High reliability High temperature soldering guaranteed: 260 C/10 seconds at terminals 0.180(4.57) 0.160(4.06) 0.096(2.44) 0.084(2.13) 0.060(1.52) 0.030(0.76) 0.008(0.203)MAX. 0.220(5.59) 0.200(5.08) Dimensions in inches and (millimeters) 0.012(0.305) 0.006(0.152).
