FA1112C - Single Color High Brightness LED

Features

  • Package Product features 1112C Series Single Color High Brightness Type 1608 (h=0.5mm) Type, Milky White resin Outer Dimension 1.6 x 0.8 x 0.4mm ( L x W x H ) Temperature range Storage Temperature : -40℃～100℃ Operating Temperature : -40℃～85℃ Lead.
  • free soldering compatible RoHS compliant Dominant wavelength Half Intensity Angle Yellow Orange Red : 590nm(FY) : 605nm(FA) : 626nm(FR) FY FA,FR : θx = 132 deg. , θy = 149 deg. : θx = 130 deg. , θy = 150 deg. Die materials Rank grouping par.

📥 Download Datasheet

Datasheet Details

Part number FA1112C
Manufacturer STANLEY ELECTRIC
File Size 240.69 KB
Description Single Color High Brightness LED
Datasheet download datasheet FA1112C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FA1112H Thin Type AllnGaP SMT LED Stanley
FA1111C Ultra Compact AllnGaP SMT LED Stanley
FA11 CAPACITORS TDK
FA1101F Series Right Angle AlInGaP SMT LED Stanley
FA1105W Dome Lens Type AllnGaP SMT LED Stanley

Other Datasheets by STANLEY ELECTRIC

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

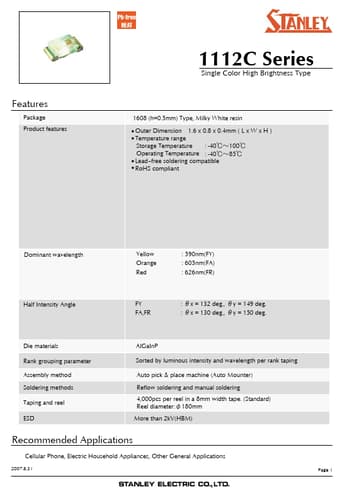

Features Package Product features 1112C Series Single Color High Brightness Type 1608 (h=0.5mm) Type, Milky White resin Outer Dimension 1.6 x 0.8 x 0.4mm ( L x W x H ) Temperature range Storage Temperature : -40℃～100℃ Operating Temperature : -40℃～85℃ Lead–free soldering compatible RoHS compliant Dominant wavelength Half Intensity Angle Yellow Orange Red : 590nm(FY) : 605nm(FA) : 626nm(FR) FY FA,FR : θx = 132 deg., θy = 149 deg. : θx = 130 deg., θy = 150 deg. Die materials Rank grouping parameter Assembly method Soldering methods Taping and reel ESD AlGaInP Sorted by luminous intensity and wavelength per rank taping Auto pick & place machine (Auto Mounter) Reflow soldering and manual soldering 4,000pcs per reel in a 8mm width tape.
