TDA7370 Datasheet (ST Microelectronics) - QUAD POWER AMPLIFIER FOR CAR RADIO

TDA7370, QUAD POWER AMPLIFIER FOR CAR RADIO

The TDA7370 is a new technology class AB quad channels Audio Power Amplifier in Multiwatt package designed for car radio applications.

Thanks to the fully complementary PNP/NPN output configuration the high power performances of the TDA7370 are obtained without bootstrap capacitors.

April 1995 1/1

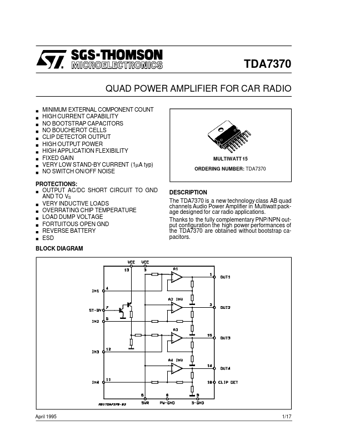

TDA7370 QUAD POWER AMPLIFIER FOR CAR RADIO MINIMUM EXTERNAL COMPONENT COUNT HIGH CURRENT CAPABILITY NO BOOTSTRAP CAPACITORS NO BOUCHEROT CELLS CLIP DETECTOR OUTPUT HIGH OUTPUT POWER HIGH APPLICATION FLEXIBILITY FIXED GAIN VERY LOW STAND-BY CURRENT (1µA typ) NO SWITCH ON/OFF NOISE PROTECTIONS: OUTPUT AC/DC SHORT CIRCUIT TO GND AND TO VS VERY INDUCTIVE LOADS OVERRATING CHIP TEMPERATURE LOAD DUMP VOLTAGE FORTUITOUS OPEN GND REVERSE BATTERY ESD BLOCK DIAGRAM MULTIWATT 15 ORDERING NUMBER: TDA7370 D

TDA7370 Features

* is added to avoid destruction, if during fitting to the car, a mistake on the connection of the
