TDA7264A - 25+25W STEREO AMPLIFIER

📥 Download Datasheet

Preview of TDA7264A PDF
datasheet Preview Page 2 datasheet Preview Page 3

TDA7264A Product details

Description

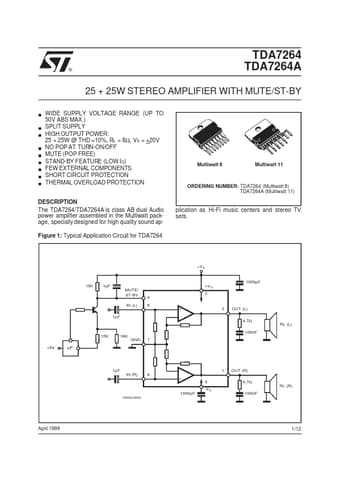

The TDA7264/TDA7264A is class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound apFigure 1: Typical Application Circuit for TDA7264 Multiwatt 8 Multiwatt 11 ORDERING NUMBER: TDA7264 (Multiwatt 8) TDA7264A (Multiwatt 11) plication as Hi-Fi music centers and stereo TV sets.+V S 1000µF 15K 1µF MUTE/ ST-BY IN (L) 1µF +VS 4 6 + 2 3 OUT (L) 4.7Ω 100nF RL (L) 15K +5V µP 18K GND 7 1µF IN (R) 8 + 1000µ F 5 -VS 1 OUT (R) 4.7Ω
