STW9NB90, N-CHANNEL 900V - 0.85ohm - 9.7A - TO-247 PowerMESH MOSFET

® STW9NB90 N-CHANNEL 900V - 0.85Ω - 9.7A - TO-247 PowerMESH™ MOSFET TYPE STW 9NB90 s s s s s s V DSS 900 V R DS(on) <1Ω ID 9.7 A TYPICAL RDS(on).
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

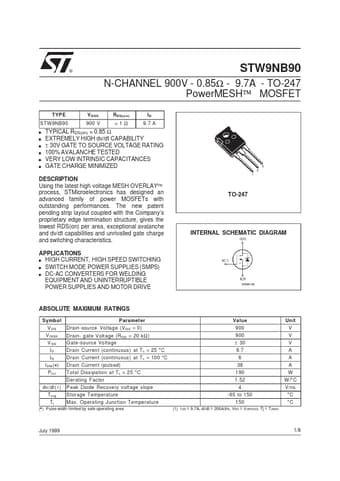

STW9NB90_STMicroelectronics.pdf

STW9NB90 Datasheet Preview — Preview of STW9NB90 PDF

Datasheet Details

Part number:

STW9NB90

Manufacturer:

STMicroelectronics ↗

File Size:

87.68 KB

Description:

N-CHANNEL 900V - 0.85ohm - 9.7A - TO-247 PowerMESH MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) Ts tg Tj
