STW7NB80, N-CHANNEL MOSFET

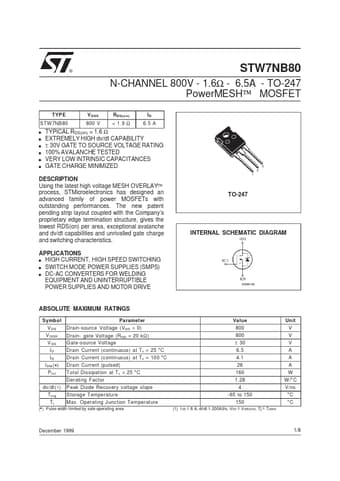

® STW7NB80 N-CHANNEL 800V - 1.6Ω - 6.5A - TO-247 PowerMESH™ MOSFET TYPE STW 7NB80 s s s s s s V DSS 800 V R DS(on) < 1.9 Ω ID 6.5 A TYPICAL RDS(.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STW7NB80_STMicroelectronics.pdf

STW7NB80 Datasheet Preview — Preview of STW7NB80 PDF

Datasheet Details

Part number:

STW7NB80

Manufacturer:

STMicroelectronics ↗

File Size:

88.35 KB

Description:

N-CHANNEL MOSFET

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
