STW5NA100 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS

📥 Download Datasheet

Datasheet preview – STW5NA100

Datasheet Details

Part number STW5NA100
Manufacturer STMicroelectronics
File Size 249.42 KB
Description N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
Datasheet download datasheet STW5NA100 Datasheet
Additional preview pages of the STW5NA100 datasheet.

📁 Similar Datasheet

  • STW5094A - 18-bit Low Power Asynchronous Stereo Audio DAC (STMicroelectronics)
  • STW5098 - Dual low power asynchronous stereo audio Codec (STMicroelectronics)
  • STW50N65DM2AG - N-Channel MOSFET (STMicroelectronics)
  • STW5200 - 103 dB SNR audio DAC (STMicroelectronics)
  • STW5210 - 103 dB SNR audio DAC (STMicroelectronics)
  • STW52N60DM6 - N-channel Power MOSFET (STMicroelectronics)
  • STW54NK30Z - N-CHANNEL MOSFET (STMicroelectronics)
  • STW54NM65ND - N-Channel MOSFET (INCHANGE)
  • STW55NM50N - N-channel MOSFET (STMicroelectronics)
  • STW55NM60N - N-CHANNEL MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STW5NA100FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
  • STW5NA90 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
  • STW5NA90FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
  • STW5NB100 - N-CHANNEL MOSFET
  • STW5NB90 - N-CHANNEL MOSFET
  • STW5NK100Z - N-CHANNEL MOSFET
  • STW5093 - 2.7V SUPPLY 14-BIT LINEAR CODEC WITH HIGH-PERFORMANCE AUDIO FRONT-END
  • STW5094 - 18 BIT 8kHz TO 48kHz LOW POWER STEREO AUDIO DAC

Full PDF Text Transcription

Click to expand full text

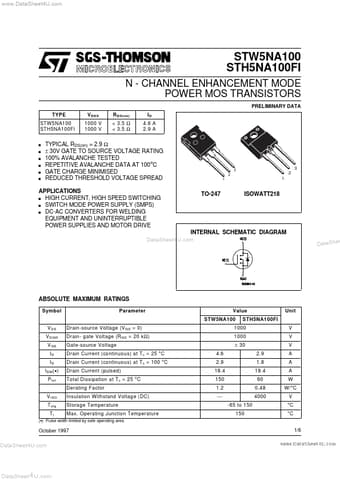

www.DataSheet4U.com STW5NA100 STH5NA100FI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS PRELIMINARY DATA TYPE STW5NA100 STH5NA100FI s s s s s s V DSS 1000 V 1000 V R DS(on) < 3.5 Ω < 3.5 Ω ID 4.6 A 2.9 A TYPICAL RDS(on) = 2.9 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100 oC GATE CHARGE MINIMISED REDUCED THRESHOLD VOLTAGE SPREAD TO-247 3 2 1 3 2 1 APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLY (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s ISOWATT218 INTERNAL SCHEMATIC DIAGRAM DataSheet4U.
