STW12NC60 N-CHANNEL MOSFET

STW12NC60 Description

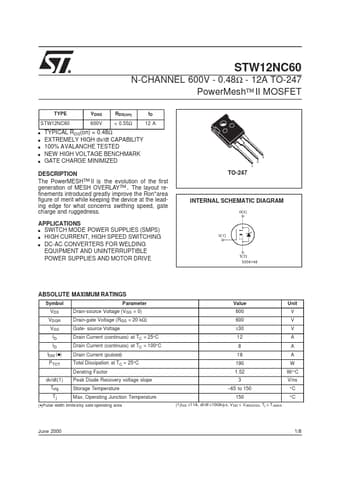

www.DataSheet4U.com N-CHANNEL 600V - 0.48Ω - 12A TO-247 PowerMesh™ II MOSFET TYPE STW12NC60 s s s s s STW12NC60 VDSS 600V RDS(on) < 0.55Ω ID 12 A.
The PowerMESH™ II is the evolution of the first generation of MESH OVERLAY™ . area figur.

STW12NC60 Applications

* s SWITCH MODE POWER SUPPLIES (SMPS) s HIGH CURRENT, HIGH SPEED SWITCHING s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE TO-247 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt(1) Tstg Tj Parameter Drain-s
