STV9379FA - VERTICAL DEFLECTION BOOSTER

Description

Designed for monitors and high performance TVs, the STV9379FA vertical deflection booster can handle flyback voltage up to 90V.

Further to this, it is possible to have a flyback voltage which is more than the double of the supply (Pin 2).

📥 Download Datasheet

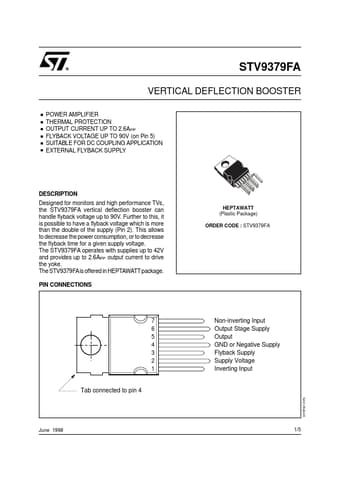

Datasheet preview – STV9379FA

Datasheet Details

Part number STV9379FA
Manufacturer STMicroelectronics
File Size 78.32 KB
Description VERTICAL DEFLECTION BOOSTER
Datasheet download datasheet STV9379FA Datasheet
Additional preview pages of the STV9379FA datasheet.

📁 Similar Datasheet

  • STV9378 - VERTICAL DEFLECTION BOOSTER (STMicroelectronics)
  • STV9302B - Vertical Deflection Booster (STMicroelectronics)
  • STV9306B - Bus-Controlled Vertical Deflection System (STMicroelectronics)
  • STV9380 - CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)
  • STV9380A - CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)
  • STV9381 - CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)
  • STV9382 - CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)
  • STV9383 - CLASS-D VERTICAL DEFLECTION AMPLIFIER (STMicroelectronics)
  • STV9420 - (STV9420 / STV9421) MULTISYNC ON-SCREEN DISPLAY (STMicroelectronics)
  • STV9421 - (STV9420 / STV9421) MULTISYNC ON-SCREEN DISPLAY (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STV9379F - VERTICAL DEFLECTION BOOSTER
  • STV9379 - VERTICAL DEFLECTION BOOSTER
  • STV9379A - VERTICAL DEFLECTION BOOSTER
  • STV9302 - Vertical Deflection Booster
  • STV9302A - Vertical Deflection Booster
  • STV9303 - PULSE DRIVEN VERTICAL BOOSTER
  • STV9306 - BUS CONTROLLED VERTICAL DEFLECTION SYSTEM WITH EAST/WEST CORRECTION OUTPUT CIRCUIT
  • STV9306A - Bus Controlled Vertical Deflection System

Full PDF Text Transcription

Click to expand full text
STV9379FA VERTICAL DEFLECTION BOOSTER . . . . . . POWER AMPLIFIER THERMAL PROTECTION OUTPUT CURRENT UP TO 2.6APP FLYBACK VOLTAGE UP TO 90V (on Pin 5) SUITABLE FOR DC COUPLING APPLICATION EXTERNAL FLYBACK SUPPLY DESCRIPTION Designed for monitors and high performance TVs, the STV9379FA vertical deflection booster can handle flyback voltage up to 90V. Further to this, it is possible to have a flyback voltage which is more than the double of the supply (Pin 2). This allows to decrease the power consumption, or to decrease the flyback time for a given supply voltage. The STV9379FA operates with supplies up to 42V and provides up to 2.6APP output current to drive the yoke. The STV9379FA is offered in HEPTAWATT package.
