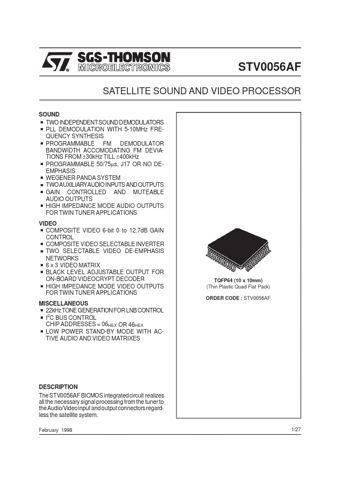

STV0056AF SATELLITE SOUND AND VIDEO PROCESSORS

STV0056AF Description

STV0056AF SATELLITE SOUND AND VIDEO PROCESSOR VIDEO COMPOSITE VIDEO 6-bit 0 to 12.7dB GAIN CONTROL COMPOSITE VIDEO SELECTABLE INVERTER TWO SELECTABLE.
The STV0056AF BICMOS integratedcircuit realizes all the necessary signal processing from the tuner to theAudio/Videoinput andoutputconnectors regardle.

STV0056AF Applications

* MISCELLANEOUS 22kHz TONE GENERATIONFOR LNB CONTROL I2C BUS CONTROL CHIP ADDRESSES = 06HEX OR 46HEX LOW POWER STAND-BY MODE WITH ACTIVE AUDIO AND VIDEO MATRIXES
* . . SOUND TWO INDEPENDENT SOUND DEMODULATORS PLL DEMODULATION WITH 5-10MHz FREQUENCY SYNTHESIS PROGRAMMABLE FM
