STTH806DTI Tandem 600V HYPERFAST BOOST DIODE

STTH806DTI Description

www.DataSheet4U.com ® STTH806DTI Tandem 600V HYPERFAST BOOST DIODE MAJOR PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) IRM (typ.) trr (typ.
The TURBOSWITCH “H” is an ultra high performance diode composed of two 300V dice in series.

STTH806DTI Features

* s 8A 600 V 150 °C 2.4 V 4A 13 ns 1 2 2 1 Insulated TO-220AB s s s s s ESPECIALLY SUITED AS BOOST DIODE IN CONTINUOUS MODE POWER FACTOR CORRECTORS AND HARD SWITCHING CONDITIONS DESIGNED FOR HIGH DI/DT OPERATION. HYPERFAST RECOVERY CURRENT TO COMPETE WITH SIC DEVICES. ALLOWS DOWNSIZING OF M

📥 Download Datasheet

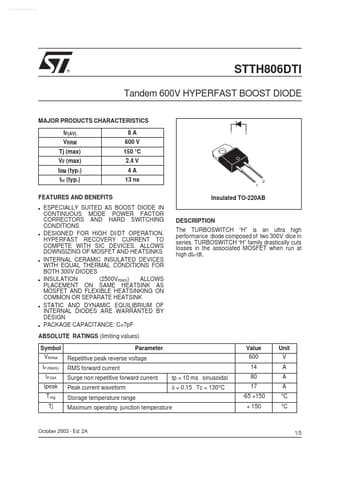

Preview of STTH806DTI PDF
datasheet Preview Page 2 datasheet Preview Page 3
