STTH15L06D, STTH15L06, TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

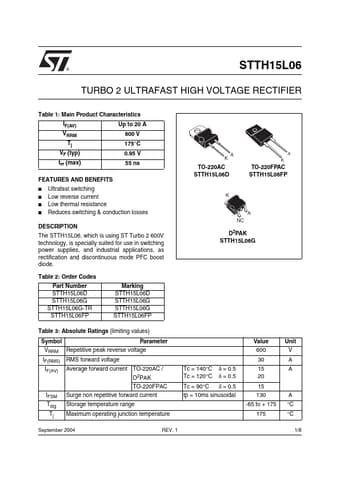

® STTH15L06 TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER Table 1: Main Product Characteristics IF(AV) VRRM Tj VF (typ) trr (max) .
The STTH15L06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial applications, as rec.

STTH15L06-STMicroelectronics.pdf

STTH15L06D Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH15L06D, STTH15L06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STTH15L06D, STTH15L06

Manufacturer:

STMicroelectronics ↗

File Size:

98.19 KB

Description:

TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: STTH15L06D, STTH15L06.
Please refer to the document for exact specifications by model.

Applications

* as rectification and discontinuous mode PFC boost diode. Table 2: Order Codes Part Number STTH15L06D STTH15L06G STTH15L06G-TR STTH15L06FP Marking STTH15L06D STTH15L06G STTH15L06G STTH15L06FP D2PAK STTH15L06G Table 3: Absolute Ratings (limiting values) Symbol Parameter VRRM Repetitive peak reverse
