STS5DNE30L N-Channel MOSFET

STS5DNE30L Description

® STS5DNE30L N - CHANNEL 30V - 0.039Ω - 5A SO-8 STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS5DNE30L s s V DSS 30 V R DS(on) < 0.045 Ω ID 5A .
This Power MOSFET is the latest development of STMicroelectronics unique " Single Feature Size™ " strip-based process.

STS5DNE30L Applications

* s DC MOTOR DRIVE s DC-DC CONVERTERS s BATTERY MANAGMENT IN NOMADIC EQUIPMENT s POWER MANAGEMENT IN PORTABLE/DESKTOP PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source Volt

📥 Download Datasheet

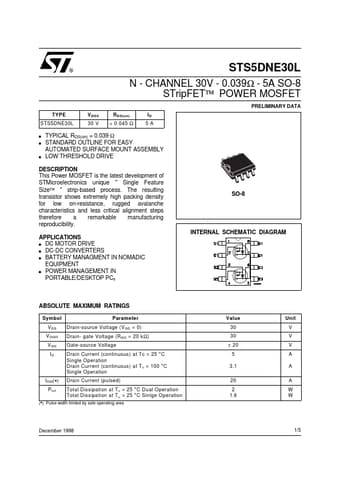

Preview of STS5DNE30L PDF
