STS4DNFS30 - N-channel Power MOSFET

Description

This product associates the latest low voltage STripFET™ in n-channel version to a low drop Schottky diode.

Such configuration is extremely versatile in implementing a large variety of DC-DC converters for printers, portable equipment.

Features

  • Type STS4DNFS30 Schottky VDSS 30V IF(AV) 4.5A RDS(on).

📥 Download Datasheet

Datasheet preview – STS4DNFS30

Datasheet Details

Part number STS4DNFS30
Manufacturer STMicroelectronics
File Size 320.33 KB
Description N-channel Power MOSFET
Datasheet download datasheet STS4DNFS30 Datasheet
Additional preview pages of the STS4DNFS30 datasheet.

📁 Similar Datasheet

  • STS4DNF60 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STS40 - 16-bit Temperature Sensor (Sensirion)
  • STS400 - N-Channel MOSFET (SamHop Microelectronics)
  • STS4054 - DC Constant current charging IC (ETC)
  • STS41 - 16-bit Temperature Sensor (Sensirion)
  • STS41A - Automotive-Grad Temperature Sensor (Sensirion)
  • STS4300 - N-Channel MOSFET (SamHop Microelectronics)
  • STS4501 - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS4622 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STS4L - 16-bit Temperature Sensor (Sensirion)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

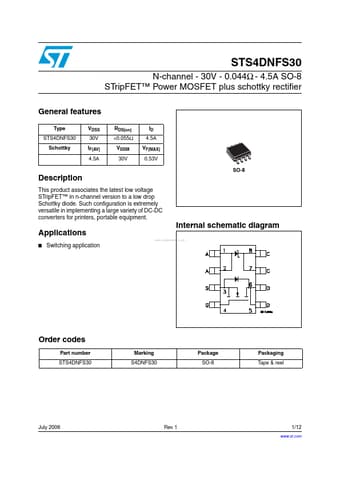

STS4DNFS30 N-channel - 30V - 0.044Ω - 4.5A SO-8 STripFET™ Power MOSFET plus schottky rectifier General features Type STS4DNFS30 Schottky VDSS 30V IF(AV) 4.5A RDS(on) <0.055Ω VRRM 30V ID 4.5A VF(MAX) 0.53V SO-8 Description This product associates the latest low voltage STripFET™ in n-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing a large variety of DC-DC converters for printers, portable equipment. Internal schematic diagram Applications www.DataSheet4U.com ■ Switching application Order codes Part number STS4DNFS30 Marking S4DNFS30 Package SO-8 Packaging Tape & reel July 2006 Rev 1 1/12 www.st.com 12 Contents STS4DNFS30 Contents 1 2 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
