STPR1020CT, STPR1020, ULTRA-FAST RECOVERY RECTIFIER DIODES

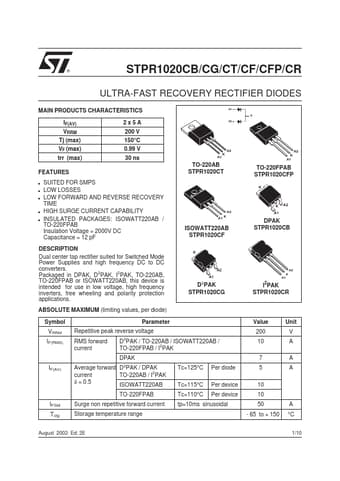

® STPR1020CB/CG/CT/CF/CFP/CR ULTRA-FAST RECOVERY RECTIFIER DIODES MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) trr (max) .
Dual center tap rectifier suited for Switched Mode Power Supplies and high frequency DC to DC converters.

STPR1020_STMicroelectronics.pdf

STPR1020CT Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR1020CT, STPR1020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPR1020CT, STPR1020

Manufacturer:

STMicroelectronics ↗

File Size:

159.39 KB

Description:

ULTRA-FAST RECOVERY RECTIFIER DIODES

Note:

This datasheet PDF includes multiple part numbers: STPR1020CT, STPR1020.
Please refer to the document for exact specifications by model.

Features

* s A1 K 2x5A 200 V 150°C 0.99 V 30 ns A1 K A2 A2 A2 K A1 TO-220AB STPR1020CT TO-220FPAB STPR1020CFP K s s s s SUITED FOR SMPS LOW LOSSES LOW FORWARD AND REVERSE RECOVERY TIME HIGH SURGE CURRENT CAPABILITY INSULATED PACKAGES: ISOWATT220AB / TO-220FPAB Insulation Voltage = 2000V DC Capacita

Applications

* ABSOLUTE MAXIMUM (limiting values, per diode) Symbol VRRM IF(RMS) RMS forward current 2 A2 A1 K A1 A2 D2PAK STPR1020CG I2PAK STPR1020CR Parameter Repetitive peak reverse voltage D PAK / TO-220AB / ISOWATT220AB / TO-220FPAB / I2PAK DPAK 2 Value 200 10 7 Tc=125°C Tc=115°C Tc=110°C Per diode Per
