STP9NK70ZFP, STP9NK70Z, N-CHANNEL Power MOSFET

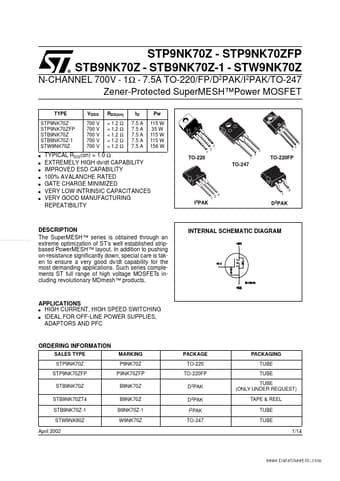

N-CHANNEL 700V - 1Ω - 7.5A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-Protected SuperMESH™Power MOSFET TYPE STP9NK70Z STP9NK70ZFP STB9NK70Z STB9NK70Z-1 STW9NK.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP9NK70Z_STMicroelectronics.pdf

STP9NK70ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP9NK70ZFP, STP9NK70Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP9NK70ZFP, STP9NK70Z

Manufacturer:

STMicroelectronics ↗

File Size:

539.28 KB

Description:

N-CHANNEL Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP9NK70ZFP, STP9NK70Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to souce. In this respect the Zener voltag

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC ORDERING INFORMATION SALES TYPE STP9NK70Z STP9NK70ZFP STB9NK7
