STP7NC80ZFP, STP7NC80Z - N-CHANNEL MOSFET

ST Microelectronics

The STP7NC80ZFP by ST Microelectronics is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP7NC80ZFP N-CHANNEL MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STP7NC80ZFP** N-CHANNEL MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STP7NC80ZFP, STP7NC80Z
Manufacturer	STMicroelectronics
File Size	542.38 KB
Description	N-CHANNEL MOSFET
Datasheet	STP7NC80Z_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STP7NC80ZFP, STP7NC80Z. Please refer to the document for exact specifications by model.

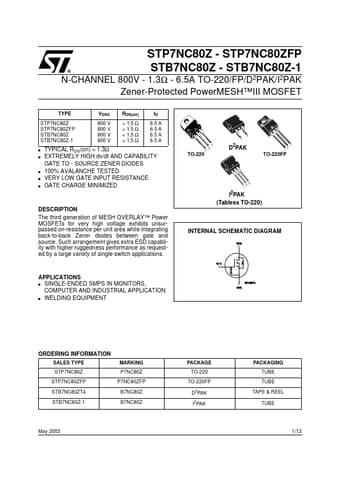

Additional preview pages of the STP7NC80ZFP datasheet.

STP7NC80ZFP Product details

Description

The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-to-back Zener diodes between gate and source.

Features

OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener voltage is appropriate to achieve an efficient and cost-effective intervention to protect the device’s integrity. These integrated Zener diodes thus avoid the usage of external components. 2/13 STP7NC80Z.
