STP75NF75FP, STP75NF75 N-CHANNEL MOSFET

STP75NF75FP Description

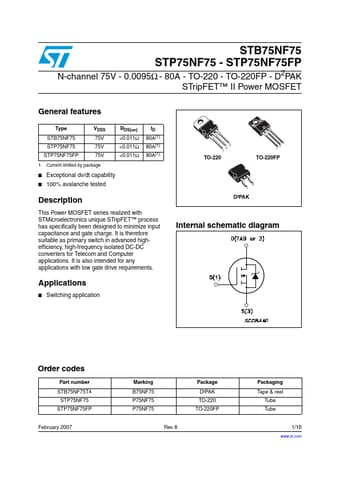

STB75NF75 STP75NF75 - STP75NF75FP N-channel 75V - 0.0095Ω - 80A - TO-220 - TO-220FP - D2PAK STripFET™ II Power MOSFET General .
This Power MOSFET series realized with STMicroelectronics unique STripFET™ process has specifically been designed to minimize input capacitance and ga.

STP75NF75FP Features

* Type STB75NF75 STP75NF75 STP75NF75FP VDSS 75V 75V 75V RDS(on)

STP75NF75FP Applications

* It is also intended for any applications with low gate drive requirements. Applications
* Switching application 3 2 1 TO-220 3 2 1 TO-220FP 3 1 D²PAK Internal schematic diagram Order codes Part number STB75NF75T4 STP75NF75 STP75NF75FP February 2007 Marking B75NF75 P75NF75 P75NF75 Rev 8

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP75NF75FP, STP75NF75. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP75NF75FP, STP75NF75
Manufacturer
STMicroelectronics ↗
File Size
404.35 KB
Datasheet
STP75NF75_STMicroelectronics.pdf
Description
N-CHANNEL MOSFET
Note
This datasheet PDF includes multiple part numbers: STP75NF75FP, STP75NF75.
Please refer to the document for exact specifications by model.
