STP6NA60 - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR

This page provides the datasheet information for the STP6NA60, a member of the STP6NA60FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR family.

Description

This series of POWER MOSFETS represents the most advanced high voltage technology.

The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on) and gate charge, unequalled ruggedness and superior switching performance.

📥 Download Datasheet

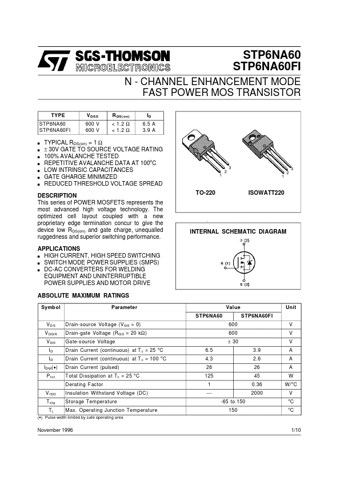

Datasheet preview – STP6NA60

Datasheet Details

Part number STP6NA60
Manufacturer STMicroelectronics
File Size 206.48 KB
Description N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
Datasheet download datasheet STP6NA60 Datasheet
Additional preview pages of the STP6NA60 datasheet.

📁 Similar Datasheet

  • STP6NA80 - N-CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR (STMicroelectronics)
  • STP6NA80FI - N-CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR (STMicroelectronics)
  • STP6N120K3 - N-channel MOSFET (STMicroelectronics)
  • STP6N50 - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
  • STP6N50FI - N-CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (STMicroelectronics)
  • STP6N60M2 - N-channel Power MOSFET (STMicroelectronics)
  • STP6N62K3 - N-channel Power MOSFET (STMicroelectronics)
  • STP6N65M2 - N-channel Power MOSFET (STMicroelectronics)
  • STP6N80K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP6N80K5 - N-Channel MOSFET (INCHANGE)
Other Datasheets by ST Microelectronics
  • STP6NA60FI - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
  • STP6NA60FP - N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR
  • STP6N25 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
  • STP6N25FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTORS
  • STP6N60FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
  • STP6NB25 - N-CHANNEL MOSFET
  • STP6NB25FP - N-CHANNEL MOSFET
  • STP6NB50 - N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
STP6NA60 STP6NA60FI N - CHANNEL ENHANCEMENT MODE FAST POWER MOS TRANSISTOR TYPE STP6NA60 STP6NA60FI s s s s s s s V DSS 600 V 600 V R DS( on) < 1.2 Ω < 1.2 Ω ID 6.5 A 3.9 A TYPICAL RDS(on) = 1 Ω ± 30V GATE TO SOURCE VOLTAGE RATING 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW INTRINSIC CAPACITANCES GATE GHARGE MINIMIZED REDUCED THRESHOLD VOLTAGE SPREAD TO-220 3 1 2 1 2 3 DESCRIPTION This series of POWER MOSFETS represents the most advanced high voltage technology. The optimized cell layout coupled with a new proprietary edge termination concur to give the device low RDS(on) and gate charge, unequalled ruggedness and superior switching performance.
