STP5NK50Z - N-CHANNEL Power MOSFET

ST Microelectronics

The STP5NK50Z by ST Microelectronics is a N-CHANNEL Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP5NK50Z N-CHANNEL Power MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STP5NK50Z** N-CHANNEL Power MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STP5NK50Z
Manufacturer	STMicroelectronics
File Size	669.79 KB
Description	N-CHANNEL Power MOSFET
Datasheet	STP5NK50Z_STMicroelectronics.pdf

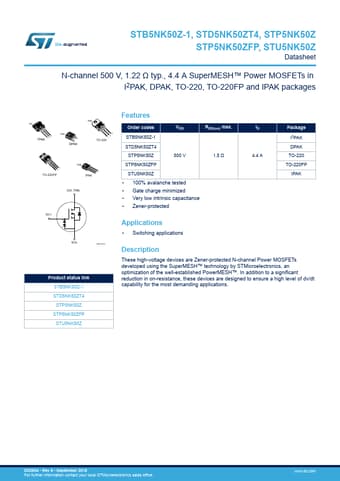

Additional preview pages of the STP5NK50Z datasheet.

STP5NK50Z Product details

Description

These high-voltage devices are Zener-protected N-channel Power MOSFETs developed using the SuperMESH™ technology by STMicroelectronics, an optimization of the well-established PowerMESH™.

Features

Order codes VDS RDS(on) max. STB5NK50Z-1 STD5NK50ZT4 STP5NK50Z 500 V 1.5 Ω STP5NK50ZFP STU5NK50Z.
100% avalanche tested.
Gate charge minimized.
Very low intrinsic capacitance.
Zener-protected ID 4.4 A Package I2PAK DPAK TO-220 TO-220FP IPAK.
