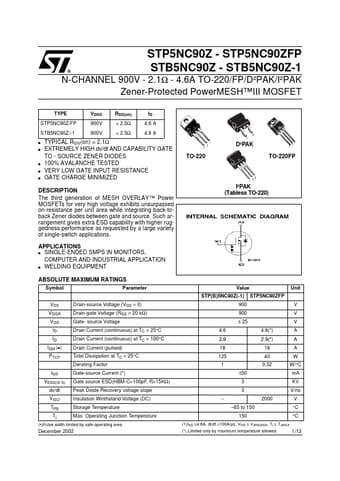

STP5NC90Z - STP5NC90ZFP STB5NC90Z - STB5NC90Z-1 N-CHANNEL 900V - 2.1Ω - 4.6A TO-220/FP/D²PAK/I²PAK Zener-Protected PowerMESH™III MOSFET TYPE STP5NC90Z.
The third generation of MESH OVERLAY™ Power MOSFETs for very high voltage exhibits unsurpassed on-resistance per unit area while integrating back-toba.

STP5NC90Z_STMicroelectronics.pdf

STP5NC90ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP5NC90ZFP, STP5NC90Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP5NC90ZFP, STP5NC90Z

Manufacturer:

STMicroelectronics ↗

File Size:

403.70 KB

Description:

N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP5NC90ZFP, STP5NC90Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* APPLICATIONS SINGLE-ENDED SMPS IN MONITORS, COMPUTER AND INDUSTRIAL APPLICATION s WELDING EQUIPMENT s I²PAK (Tabless TO-220) ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT IGS VESD(G-S) dv/dt VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ)
