STP4NK50Z, STP-4NK N-Channle MOSFET

STP4NK50Z Description

STP4NK50Z - STP4NK50ZFP STD4NK50Z - STD4NK50Z-1 N-CHANNEL 500V - 2.4Ω - 3A TO-220/TO-220FP/DPAK/IPAK Zener-Protected SuperMESH™Power MOSFET TYPE STP4N.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP4NK50Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STP4NK50Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC s LIGHTING s ORDERING INFORMATION SALES TYPE STP4NK50Z STP4NK50

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP4NK50Z, STP-4NK. Please refer to the document for exact specifications by model.

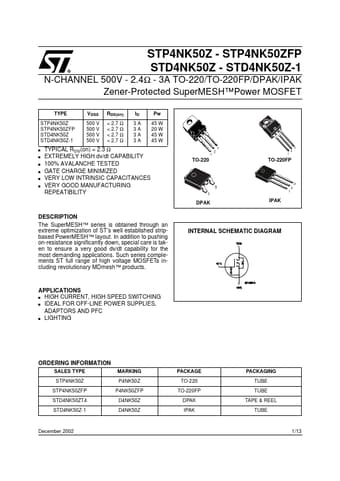

datasheet Preview Page 2 datasheet Preview Page 3
