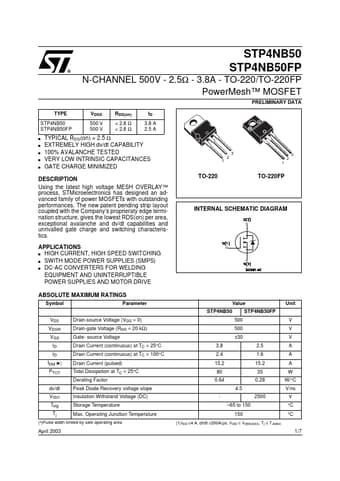

STP4NB50 STP4NB50FP N-CHANNEL 500V - 2.5Ω - 3.8A - TO-220/TO-220FP PowerMesh™ MOSFET PRELIMINARY DATA TYPE STP4NB50 STP4NB50FP s s s s s VDSS 500 V 5.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

STP4NB50_STMicroelectronics.pdf

STP4NB50FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP4NB50FP, STP4NB50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP4NB50FP, STP4NB50

Manufacturer:

STMicroelectronics ↗

File Size:

163.40 KB

Description:

N-CHANNEL MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP4NB50FP, STP4NB50.
Please refer to the document for exact specifications by model.

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE s TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt VISO Tstg Tj Parameter STP4
