STP36NF06L - N-Channel Power MOSFET

ST Microelectronics

The STP36NF06L by ST Microelectronics is a N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STP36NF06L N-Channel Power MOSFET by ST Microelectronics - Datasheet Preview — Official preview page of the **STP36NF06L** N-Channel Power MOSFET datasheet (ST Microelectronics).

Datasheet Details

Part number	STP36NF06L
Manufacturer	STMicroelectronics
File Size	543.81 KB
Description	N-Channel Power MOSFET
Datasheet	STP36NF06L_STMicroelectronics.pdf

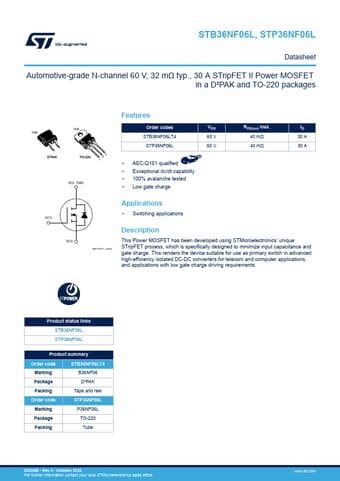

Additional preview pages of the STP36NF06L datasheet.

STP36NF06L Product details

Description

This Power MOSFET has been developed using STMicroelectronics' unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

Order codes STB36NF06LT4 STP36NF06L VDS 60 V 60 V.
AEC-Q101 qualified.
Exceptional dv/dt capability.
100% avalanche tested.
Low gate charge RDS(on) max. 40 mΩ 40 mΩ ID 30 A 30 A G(1) S(3).
