STP22NF03L, N-Channel Power MOSFET

www.DataSheet4U.com N-CHANNEL 30V - 0.038Ω - 22A TO-220 STripFET™ POWER MOSFET TYPE STP22NF03L s s s s STP22NF03L VDSS 30V RDS(on) <0.05Ω ID 22A .
This Power Mosfet is the latest development of STMicroelectronics unique “Single Feature Size™” stripbased process.

STP22NF03L_STMicroelectronics.pdf

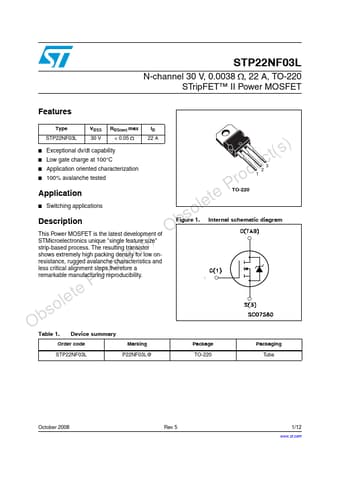

STP22NF03L Datasheet Preview — Preview of STP22NF03L PDF

Datasheet Details

Part number:

STP22NF03L

Manufacturer:

STMicroelectronics ↗

File Size:

516.83 KB

Description:

N-Channel Power MOSFET

Applications

* DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s AUTOMOTIVE ENVIRONMENT s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Volta
