STP1806, N-Channel Power MOSFET

N-CHANNEL 60V - 0.015 W - 50A TO-220 STripFET™ POWER MOSFET TYPE STP1806 * * * STP1806 VDSS 60 V RDS(on) < 0.018 W ID 50 A TYPICAL RD.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

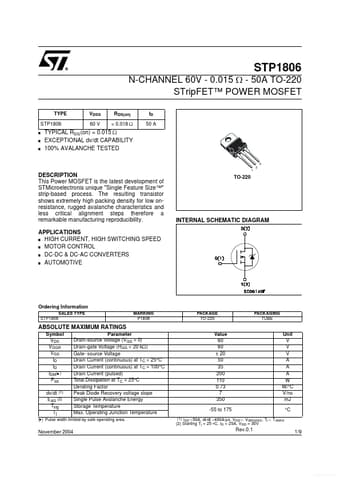

STP1806-STMicroelectronics.pdf

STP1806 Datasheet Preview — Preview of STP1806 PDF

Datasheet Details

Part number:

STP1806

Manufacturer:

STMicroelectronics ↗

File Size:

282.87 KB

Description:

N-Channel Power MOSFET

Applications

* HIGH CURRENT, HIGH SWITCHING SPEED
* MOTOR CONTROL
* DC-DC & DC-AC CONVERTERS
* AUTOMOTIVE
* TO-220 INTERNAL SCHEMATIC DIAGRAM Ordering Information SALES TYPE STP1806 MARKING P1806 PACKAGE TO-220 PACKAGING TUBE ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM() Ptot dv/dt
