STP16NE06FP, STP16NE06 N-CHANNEL Power MOSFET

STP16NE06FP Description

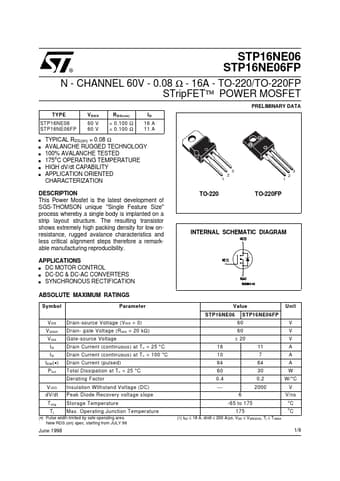

® STP16NE06 STP16NE06FP N - CHANNEL 60V - 0.08 Ω - 16A - TO-220/TO-220FP STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STP16NE06 STP16NE06FP s s s s .
This Power Mosfet is the latest development of SGS-THOMSON unique "Single Feature Size" process whereby a single body is implanted on a strip layout s.

STP16NE06FP Applications

* DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION s TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
* ) P tot V ISO dV/dt T stg Tj Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-sour
