STP14NF12FP, STP14NF12, N-CHANNEL Power MOSFET

STP14NF12 STP14NF12FP N-CHANNEL 120V - 0.16Ω - 14A TO-220/TO-220FP LOW GATE CHARGE STripFET™ POWER MOSFET TYPE STP14NF12 STP14NF12FP s s s VDSS 120 V.
This Power MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

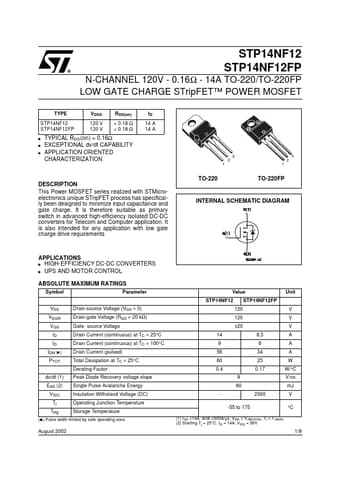

STP14NF12_STMicroelectronics.pdf

STP14NF12FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP14NF12FP, STP14NF12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP14NF12FP, STP14NF12

Manufacturer:

STMicroelectronics ↗

File Size:

345.79 KB

Description:

N-CHANNEL Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP14NF12FP, STP14NF12.
Please refer to the document for exact specifications by model.

Applications

* HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM ( ) PTOT dv/dt (1) EAS (2) VISO Tj Tstg Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuous) at TC = 25°C Drain Curr
