STP130NH02L N-channel Power MOSFET

STP130NH02L Description

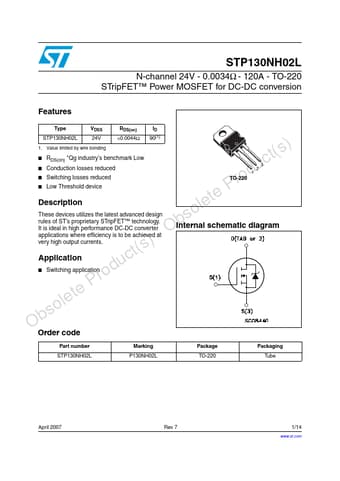

www.DataSheet4U.com N-CHANNEL 24V - 0.0034 Ω - 120A D²PAK/TO-220 STripFET™ III POWER MOSFET FOR DC-DC CONVERSION Table 1: General .
The STB_P130NH02L utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology.

STP130NH02L Features

* TYPE STB130NH02L STP130NH02L
* STB130NH02L STP130NH02L Figure 1:Package RDS(on) < 0.0044 Ω < 0.0044 Ω ID 90 A(2) 90 A(2) VDSS 24 V 24 V TYPICAL RDS(on) = 0.0034 Ω @ 10 V TYPICAL RDS(on) = 0.005 Ω @ 5 V RDS(ON)
* Qg INDUSTRY’s BENCHMARK CONDUCTION LOSSE

STP130NH02L Applications

* where efficiency is to be achieved at very high output currents. Figure 2: Internal Schematic Diagram APPLICATIONS
* SYNCHRONOUS RECTIFICATIONS FOR TELECOM AND COMPUTER
* OR-ING DIODE Table 2: Ordering Information SALES TYPE STB130NH02LT4 STP130NH02L MARKING B130NH02L P130NH02L PACKAGE TO
