STP10NK60Z - N-CHANNEL Power MOSFET

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Features

  • Type STB10NK60Z STB10NK60Z-1 STP10NK60ZFP STP10NK60Z STW10NK60Z.
  • Package RDS(on).

📥 Download Datasheet

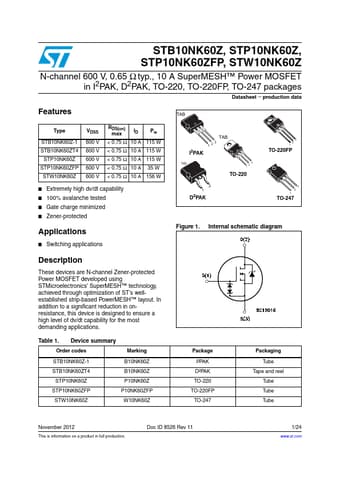

Datasheet preview – STP10NK60Z

Datasheet Details

Part number STP10NK60Z
Manufacturer STMicroelectronics
File Size 902.25 KB
Description N-CHANNEL Power MOSFET
Datasheet download datasheet STP10NK60Z Datasheet
