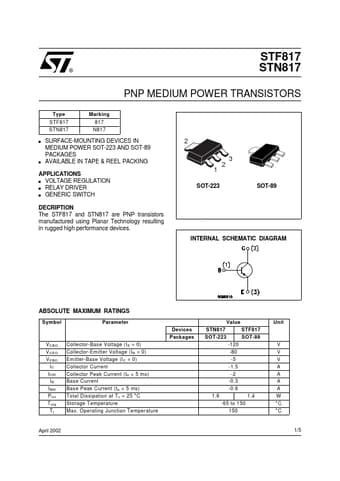

STN817, PNP MEDIUM POWER TRANSISTORS

www.DataSheet4U.com ® STF817 STN817 PNP MEDIUM POWER TRANSISTORS Type STF817 STN817 s Marking 817 N817 s SURFACE-MOUNTING DEVICES IN MEDIUM POWE

Applications

* s VOLTAGE REGULATION s RELAY DRIVER s GENERIC SWITCH DECRIPTION The STF817 and STN817 are PNP transistors manufactured using Planar Technology resulting in rugged high performance devices.
1 SOT-223 2 3 SOT-89 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Devices Package
