STLC8201 - Dual Band Wireless Lan Baseband Processor

Description

The STMicroelectronics STLC8201 wireless LAN baseband processor is an integrated Medium Access Controller and Physical Layer Processor.

Features

  • ES Tri Mode 802.11a, 802.11g and 802.11b compliant. AgileRF allows fully automated roaming between different modes. Implements data rates of 6, 9, 12, 18, 24, 36, 48 and 54 Mbps in 802.11a and 802.11g modes, using an advanced OFDM processor with channel equalizer. Implements data rates of 1, 2, 5.5 and 11 Mbps in 802.11b mode, using advanced RAKE and decision feedback equalization. Improved PA efficiency using digital predistortion linearization and active bias control. Gain and Phase imbalance.

📥 Download Datasheet

Datasheet preview – STLC8201

Datasheet Details

Part number STLC8201
Manufacturer STMicroelectronics
File Size 85.06 KB
Description Dual Band Wireless Lan Baseband Processor
Datasheet download datasheet STLC8201 Datasheet
Additional preview pages of the STLC8201 datasheet.

📁 Similar Datasheet

  • STLC8100 - DUAL BAND WIRELESS LAN RF TRANSCEIVER (STMicroelectronics)
  • STLC2690 - Bluetooth and FM transceiver system-on-chip (STMicroelectronics)
  • STLC4560 - Single chip 802.11b/g WLAN radio (STMicroelectronics)
  • STL-S3 - Stratum 3 Timing Module (Connor-Winfield)
  • STL-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STL03S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
Other Datasheets by ST Microelectronics
  • STLC2150 - BLUETOOTH RADIO TRANSCEIVER
  • STLC2410B - BLUETOOTH BASEBAND
  • STLC2411 - BLUETOOTH BASEBAND
  • STLC2415 - BLUETOOTH BASEBAND WITH INTEGRATED FLASH
  • STLC2416 - BLUETOOTH BASEBAND WITH INTEGRATED FLASH
  • STLC2500 - BLUETOOTH SINGLE CHIP
  • STLC3055 - WLL & ISDN-TA SUBSCRIBER LINE INTERFACE CIRCUIT
  • STLC3055N - WLL & ISDN-TA SUBSCRIBER LINE INTERFACE CIRCUIT

Full PDF Text Transcription

Click to expand full text

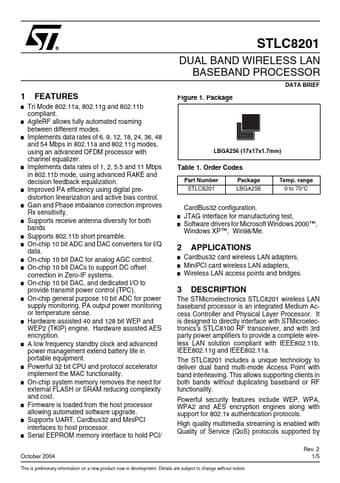

STLC8201 DUAL BAND WIRELESS LAN BASEBAND PROCESSOR DATA BRIEF 1 ■ ■ ■ FEATURES Tri Mode 802.11a, 802.11g and 802.11b compliant. AgileRF allows fully automated roaming between different modes. Implements data rates of 6, 9, 12, 18, 24, 36, 48 and 54 Mbps in 802.11a and 802.11g modes, using an advanced OFDM processor with channel equalizer. Implements data rates of 1, 2, 5.5 and 11 Mbps in 802.11b mode, using advanced RAKE and decision feedback equalization. Improved PA efficiency using digital predistortion linearization and active bias control. Gain and Phase imbalance correction improves Rx sensitivity. Supports receive antenna diversity for both bands Supports 802.11b short preamble. On-chip 10 bit ADC and DAC converters for I/Q data. On-chip 10 bit DAC for analog AGC control.
