STLC61266, STLC61265 - (STLC61265/66) ADSL2 + Central Office Chipset

ST Microelectronics

The STLC61266 by ST Microelectronics is a (STLC61265/66) ADSL2 + Central Office Chipset. Below is the official datasheet preview.

📥 Download Datasheet

STLC61266 (STLC61265/66) ADSL2 + Central Office Chipset by ST Microelectronics - Datasheet Preview — Official preview page of the **STLC61266** (STLC61265/66) ADSL2 + Central Office Chipset datasheet (ST Microelectronics).

Datasheet Details

Part number	STLC61266, STLC61265
Manufacturer	STMicroelectronics
File Size	158.58 KB
Description	(STLC61265/66) ADSL2 + Central Office Chipset
Datasheet	STLC61265_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STLC61266, STLC61265. Please refer to the document for exact specifications by model.

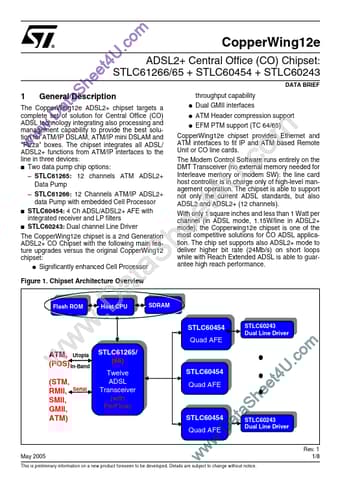

Additional preview pages of the STLC61266 datasheet.

STLC61266 Product details

Description

a at .D w w w DATA BRIEF throughput capability Dual GMII interfaces The CopperWing12e ADSL2+ chipset targets a complete set of solution for Central Office (CO) ADSL technology integrating also processing and management capability to provide the best solution for ATM/IP DSLAM, ATM/IP mini DSLAM and "Pizza" boxes.The chipset integrates all ADSL/ ADSL2+ functions from ATM/IP interfaces to the line in three devices: Two data pump chip options: STLC61265: 12 channels ATM ADSL2+ Dat

Features

Network processing functionality on the line card.
First stage switching Cell and Packet processing.
AAL5 and AAL2 SAR functions on chip.
ATM line card switch.
PTM-TC (Packet Over HDLC & Packet over 64/65B).
Traffic Management and Policing Configurable backplane interfaces.
Utopia Level 2&3, PoS, RMII, SMII, GMII, Serial ATM, STM.
2/8 STLC61265 12.
