STLC4370 - Single Chip 802.11b/g WLAN Radio

Description

The STLC4370 is a single chip 802.11b/g WLAN radio for embedded, low-power and very small form factor mobile applications.

Features

Extremely small footprint Ultra Low Power consumption Fully compliant with the IEEE 802.11b and 802.11g WLAN standards Support for 54, 48, 36, 24, 18, 12, 9, and 6Mbps OFDM, 11 and 5.5Mbps CCK and legacy 2 and 1Mbps data rates Single Chip 802.11b/g WLAN solution with fully integrated:.
Zero IF (ZIF) transceiver,.
Voltage Controlled Oscillator (VCO),.
High-speed A/D and D/A converters,.
Radio Power Management Unit (PMU),.
OFDM.

Datasheet Details

Part number	STLC4370
Manufacturer	STMicroelectronics
File Size	128.62 KB
Description	Single Chip 802.11b/g WLAN Radio
Datasheet	STLC4370 Datasheet
Additional preview pages of the STLC4370 datasheet.

📁 Similar Datasheet

STLC4560 - Single chip 802.11b/g WLAN radio (STMicroelectronics)

STLC2690 - Bluetooth and FM transceiver system-on-chip (STMicroelectronics)

STLC8100 - DUAL BAND WIRELESS LAN RF TRANSCEIVER (STMicroelectronics)

STL-S3 - Stratum 3 Timing Module (Connor-Winfield)

STL-S3E - Stratum 3E Timing Module (Connor-Winfield)

STL03S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)

STL03S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)

STL03S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)

STL03S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)

STL03S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)

Full PDF Text Transcription

Click to expand full text

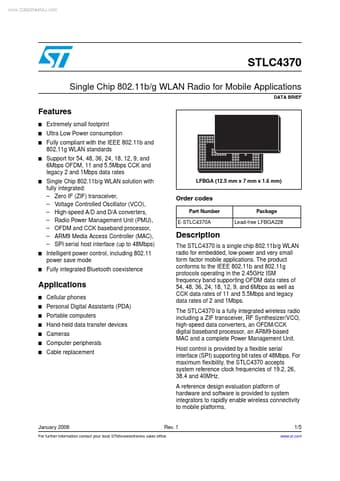

www.DataSheet4U.com STLC4370 Single Chip 802.11b/g WLAN Radio for Mobile Applications DATA BRIEF Features ■ ■ ■ ■ Extremely small footprint Ultra Low Power consumption Fully compliant with the IEEE 802.11b and 802.11g WLAN standards Support for 54, 48, 36, 24, 18, 12, 9, and 6Mbps OFDM, 11 and 5.5Mbps CCK and legacy 2 and 1Mbps data rates Single Chip 802.11b/g WLAN solution with fully integrated: – Zero IF (ZIF) transceiver, – Voltage Controlled Oscillator (VCO), – High-speed A/D and D/A converters, – Radio Power Management Unit (PMU), – OFDM and CCK baseband processor, – ARM9 Media Access Controller (MAC), – SPI serial host interface (up to 48Mbps) Intelligent power control, including 802.11 power save mode Fully integrated Bluetooth coexistence LFBGA (12.5 mm x 7 mm x 1.
